Spring-boot:5分钟整合Dubbo构建分布式服务
概述：
Dubbo 是 Alibaba 开源的分布式服务框架，它最大的特点是按照分层的方式来架构，使用这种方式可以使各个层之间解耦合（或者最大限度地松耦合）。从服务模型的角度来看，Dubbo 采用的是一种非常简单的模型，要么是提供方提供服务，要么是消费方消费服务，所以基于这一点可以抽象出服务提供方（Provider）和服务消费方（Consumer）两个角色。

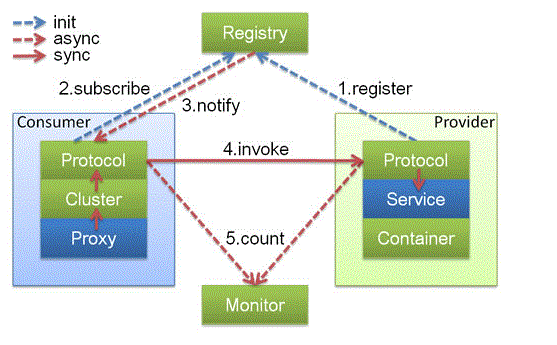

我们来看一下 Dubbo 的 RPC 调用流程，这里主要涉及到 4 个模块：
- Registry：服务注册，我们一般会采取 Zookeeper 作为我们的注册中心
- Provider：服务提供者（生产者），提供具体的服务实现
- Consumer：消费者，从注册中心中订阅服务
- Monitor：监控中心，RPC 调用次数和调用时间监控
从上图中我们可以了解到整个 RPC 服务调用的过程主要为：
- 生产者发布服务到服务注册中心中
- 消费者在服务注册中心中订阅服务
- 消费者调用已经注册的服务
一、项目构建
开发环境主要涉及以下几个方面：
- Spring-boot
- JDK 8
- Dubbo
- Zookeeper
项目构建通过: http://start.spring.io/ 快速构建 web 项目，具体操作可以参考《Spring-Boot:6 分钟掌握 SpringBoot 开发》。
由于 Dubbo 中需要使用到服务注册中心，我们这里将使用 Zookeeper 作为服务注册中心，具体安装配置，可以参考《Zookeeper-5 分钟快速掌握分布式应用程序协调服》

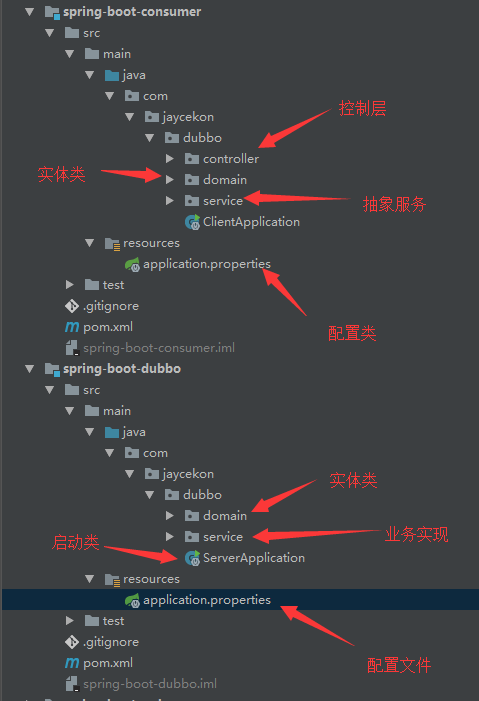

在基础环境确定好了之后，我们项目的目录结构如下：
上图所示，我们项目主要分为了两个模块，一部分是生产者：spring-boot-dubbo ，一部分是：spring-boot-consumer。
整个项目的结构非常简单，这很符合 Spring-Boot 的特性，简单便捷，下面我们开始一步步的剖析整个项目的结构
二、Productor
2.1、Pom.xml
项目依赖这一块主要使用到了基本的 Spring-Boot-Web 依赖，然后我们需要额外引入 Dubbo 与 Zookeeper 的依赖（详细依赖可参考源码，博文底部会有项目 Github 地址）：
<dependency> <groupId>io.dubbo.springboot</groupId> <artifactId>spring-boot-starter-dubbo</artifactId> <version>1.0.0</version> </dependency> <dependency> <groupId>org.apache.zookeeper</groupId> <artifactId>zookeeper</artifactId> <version>3.4.6</version> <exclusions> <exclusion> <groupId>org.slf4j</groupId> <artifactId>slf4j-log4j12</artifactId> </exclusion> <exclusion> <groupId>log4j</groupId> <artifactId>log4j</artifactId> </exclusion> </exclusions> </dependency>
2.2、配置文件
由于我们底层使用的是 Spring-Boot 进行开发，那么我们就应该善于利用 Spring-Boot 给我们带来的优势，因此我们可以直接在 Application.properties 文件中配置 Dubbo 服务：
## Dubbo 服务提供者配置
spring.dubbo.application.name=provider -- 服务名称
spring.dubbo.registry.address=zookeeper://127.0.0.1:2181 -- 注册中心地址
spring.dubbo.protocol.name=dubbo -- dubbo 协议
spring.dubbo.protocol.port=20880
spring.dubbo.scan=com.jaycekon.dubbo.service -- 声明需要暴露的服务接口
如果不采用 Spring-Boot 进行自动配置，大家可以参考一下的配置 xml 配置：
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd"> <!-- 提供方应用信息 --> <dubbo:application name="provider" /> <!-- 注册中心服务地址 --> <dubbo:registry protocol="zookeeper" address="127.0.0.1" check="false" /> <!-- 用 dubbo 协议--> <dubbo:protocol name="dubbo" port="-1" dispather="all" check="false" /> <dubbo:provider timeout="10000" threads="10" threadpool="fixed" loadbalance="roundrobin"/> <!-- 声明需要暴露的服务接口 --> <dubbo:service interface="com.jaycekon.dubbo.service" ref="userService"/> </beans>
2.3、服务提供
在服务提供主要包括两部分，一个是暴露服务，一个是服务实现
暴露服务：即我们平常开发中所使用的的接口，这里我们创建一个 UserService 的接口，主要包括一个保存用户的方法。
import com.jaycekon.dubbo.domain.User;/**
Created by Jaycekon on 2017/9/19.
*/
public interface UserService {User saveUser(User user);
}
服务实现：服务实现，与我们平常的服务一样，对接口进行实现，比较特别的是，我们这里需要使用到 Dubbo 的 @Service 注解
import com.alibaba.dubbo.config.annotation.Service; import com.jaycekon.dubbo.domain.User; import com.jaycekon.dubbo.service.UserService;/**
Created by Jaycekon on 2017/9/19.
*/
@Service
public class UserServiceImpl implements UserService {@Override
public User saveUser(User user) {
user.setId(1);
System.out.println(user.toString());
return user;
}
}

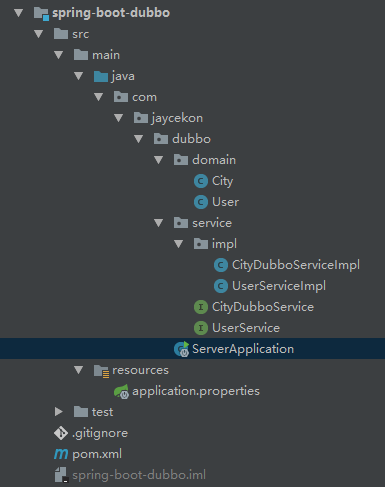

2.4、总体结构
Dubbo 的服务提供端，已经总体开发完成，非常简单，总体的目录结构如下：
三、Consumer
3.1、pom.xml
消费者的相关依赖，与生产者的依赖一致。
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion><span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>com.jaycekon<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-consumer<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span>0.0.1-SNAPSHOT<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">packaging</span><span style="color: rgba(0, 0, 255, 1)">></span>jar<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">packaging</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-consumer<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">description</span><span style="color: rgba(0, 0, 255, 1)">></span>Demo project for Spring Boot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">description</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">parent</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.springframework.boot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-starter-parent<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span>1.5.7.RELEASE<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">relativePath</span><span style="color: rgba(0, 0, 255, 1)">/></span> <span style="color: rgba(0, 128, 0, 1)"><!--</span><span style="color: rgba(0, 128, 0, 1)"> lookup parent from repository </span><span style="color: rgba(0, 128, 0, 1)">--></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">parent</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">properties</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">project.build.sourceEncoding</span><span style="color: rgba(0, 0, 255, 1)">></span>UTF-8<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">project.build.sourceEncoding</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">project.reporting.outputEncoding</span><span style="color: rgba(0, 0, 255, 1)">></span>UTF-8<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">project.reporting.outputEncoding</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">java.version</span><span style="color: rgba(0, 0, 255, 1)">></span>1.8<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">java.version</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">properties</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">dependencies</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.springframework.boot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-starter-web<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.springframework.boot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-starter-test<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">scope</span><span style="color: rgba(0, 0, 255, 1)">></span>test<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">scope</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 128, 0, 1)"><!--</span><span style="color: rgba(0, 128, 0, 1)"> Spring Boot Dubbo 依赖 </span><span style="color: rgba(0, 128, 0, 1)">--></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>io.dubbo.springboot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-starter-dubbo<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span>1.0.0<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.apache.zookeeper<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>zookeeper<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span>3.4.6<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">exclusions</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">exclusion</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.slf4j<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>slf4j-log4j12<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">exclusion</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">exclusion</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>log4j<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>log4j<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">exclusion</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">exclusions</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 128, 0, 1)"><!--</span><span style="color: rgba(0, 128, 0, 1)"> mvn spring-boot:run 热部署启动 </span><span style="color: rgba(0, 128, 0, 1)">--></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.springframework<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>springloaded<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span>1.2.3.RELEASE<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.projectlombok<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>lombok<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span>1.16.18<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">scope</span><span style="color: rgba(0, 0, 255, 1)">></span>provided<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">scope</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">dependencies</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">build</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">plugins</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">plugin</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.springframework.boot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-maven-plugin<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">plugin</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">plugins</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">build</span><span style="color: rgba(0, 0, 255, 1)">></span></project>
3.2、配置文件
配置文件与生产者稍有区别：
## 避免和 server 工程端口冲突
server.port=8081
Dubbo 服务消费者配置
spring.dubbo.application.name=consumer
spring.dubbo.registry.address=zookeeper://127.0.0.1:2181
spring.dubbo.scan=com.jaycekon.dubbo.service
基于 Xml 的配置：
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd"> <!-- 提供方应用信息 --> <dubbo:application name="provider" /> <!-- 注册中心服务地址 --> <dubbo:registry protocol="zookeeper" address="${dubbo.registry.address}" check="false" /> <!-- 用 dubbo 协议--> <dubbo:protocol name="dubbo" port="-1" dispather="all" check="false" /> <dubbo:provider timeout="10000" threads="10" threadpool="fixed" loadbalance="roundrobin"/> <!-- 声明需要暴露的服务接口 --> <dubbo:service interface="com.jaycekon.dubbo.service" ref="userService"/> </beans>
3.3、服务实现
在这里，如果我们需要调用注册服务中的相关服务，则需要实现相关的接口。
import com.jaycekon.dubbo.domain.User;/**
- Created by Jaycekon on 2017/9/19.
*/
public interface UserService {
User saveUser(User user);
}
例如，在这里我们需要使用到生产者中的 saveUser（User user） 方法，则需要创建一个接口，然后再调用时，使用 @Reference 注解进行引用：
import com.alibaba.dubbo.config.annotation.Reference; import com.jaycekon.dubbo.domain.City; import com.jaycekon.dubbo.domain.User; import org.springframework.stereotype.Component;/**
城市 Dubbo 服务消费者
<p>
Created by Jaycekon on 20/09/2017.
*/
@Component
public class CityDubboConsumerService {@Reference
CityDubboService cityDubboService;@Reference
UserService userService;public void printCity() {
String cityName = "广州";
City city = cityDubboService.findCityByName(cityName);
System.out.println(city.toString());
}public User saveUser() {
User user = new User();
user.setUsername("jaycekon")
.setPassword("jaycekong824");
return userService.saveUser(user);
}
}
3.4、服务调用
最后，我们需要实现一个 RESTful 接口，提供给用户调用：
import com.jaycekon.dubbo.service.CityDubboConsumerService; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController;/**
Created by Jaycekon on 2017/9/19.
*/
@RestController
public class UserController {@Autowired
private CityDubboConsumerService service;@RequestMapping("/save")
public Object saveUser() {</span><span style="color: rgba(0, 0, 255, 1)">return</span><span style="color: rgba(0, 0, 0, 1)"> service.saveUser();}
}

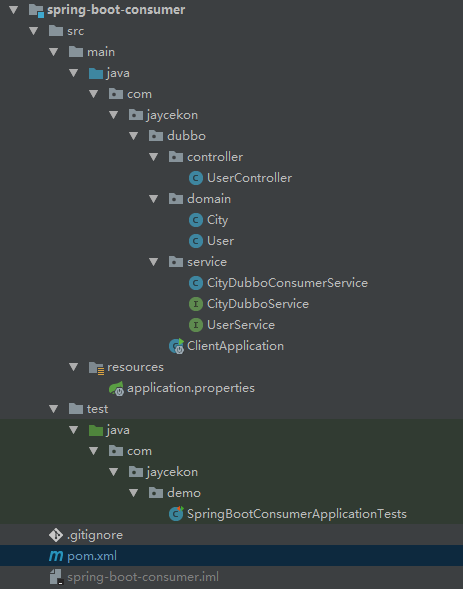

3.5、目录结构
四、总结

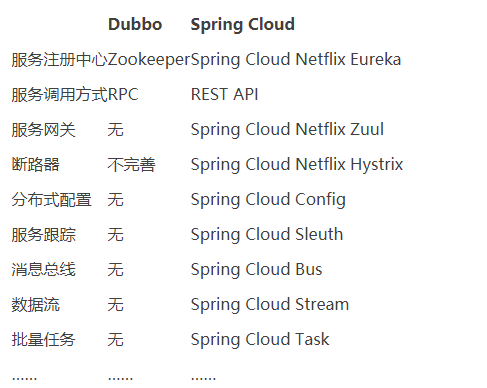

本篇博客主要是博主在学习 Spring-boot 的时候，总结下来的。在经过一些列的对比后，感觉 Dubbo 与 Spring-Cloud 还是有点差距的，不管是从服务提供，还是社区活跃来说，Spring-Cloud 还是会强一点。但是由于公司内部使用的是 Dubbo，因此还是需要学习一下，后续的话，会对 Spring-Cloud 进行学习以及分项。
本文中出现的代码，大家可以到我的 GitHub ：多啦 A 梦 的传送门-https://github.com/jaycekon/SpringBoot
希望大家不要吝啬自己的Star 和 Fork ，谢谢。
