Activiti7 与 Spring Boot 及 Spring Security 整合踩坑记录

1. 前言

实话实说，网上关于 Activiti 的教程千篇一律，有参考价值的不多。很多都是老早以前写的，基本都是直接照搬官方提供的示例，要么就是用单元测试跑一下，要么排除 Spring Security，很少有看到一个完整的项目。太难了，笔者在实操的时候，遇到很多坑，在此做一个记录。

其实，选择用 Activiti7 没别的原因，就是因为穷。但凡是有钱，谁还用开源版的啊，当然是用商业版啦。国外的工作流引擎没有考虑中国的实际情况，很多像回退、委派、撤销等等功能都没有，所以最省事的还是中国特色的 BPM。

Activiti7 的文档比较少，但是教程多。Flowable 的文档比较齐全，但是网上教程少。

2. Maven 依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.2</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.cjs.example</groupId>
    <artifactId>demo-activiti7</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo-activiti7</name>
&lt;properties&gt;
    &lt;java.version&gt;1.8&lt;/java.version&gt;
&lt;/properties&gt;

&lt;dependencies&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;org.springframework.boot&lt;/groupId&gt;
        &lt;artifactId&gt;spring-boot-starter-data-jpa&lt;/artifactId&gt;
    &lt;/dependency&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;org.springframework.boot&lt;/groupId&gt;
        &lt;artifactId&gt;spring-boot-starter-data-redis&lt;/artifactId&gt;
    &lt;/dependency&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;org.springframework.boot&lt;/groupId&gt;
        &lt;artifactId&gt;spring-boot-starter-security&lt;/artifactId&gt;
    &lt;/dependency&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;org.springframework.boot&lt;/groupId&gt;
        &lt;artifactId&gt;spring-boot-starter-web&lt;/artifactId&gt;
    &lt;/dependency&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;org.activiti&lt;/groupId&gt;
        &lt;artifactId&gt;activiti-spring-boot-starter&lt;/artifactId&gt;
        &lt;version&gt;7.1.0.M6&lt;/version&gt;
    &lt;/dependency&gt;

    &lt;dependency&gt;
        &lt;groupId&gt;mysql&lt;/groupId&gt;
        &lt;artifactId&gt;mysql-connector-java&lt;/artifactId&gt;
        &lt;scope&gt;runtime&lt;/scope&gt;
    &lt;/dependency&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;org.projectlombok&lt;/groupId&gt;
        &lt;artifactId&gt;lombok&lt;/artifactId&gt;
        &lt;optional&gt;true&lt;/optional&gt;
    &lt;/dependency&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;org.apache.commons&lt;/groupId&gt;
        &lt;artifactId&gt;commons-lang3&lt;/artifactId&gt;
        &lt;version&gt;3.12.0&lt;/version&gt;
    &lt;/dependency&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;org.apache.commons&lt;/groupId&gt;
        &lt;artifactId&gt;commons-collections4&lt;/artifactId&gt;
        &lt;version&gt;4.4&lt;/version&gt;
    &lt;/dependency&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;commons-io&lt;/groupId&gt;
        &lt;artifactId&gt;commons-io&lt;/artifactId&gt;
        &lt;version&gt;2.10.0&lt;/version&gt;
    &lt;/dependency&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;io.jsonwebtoken&lt;/groupId&gt;
        &lt;artifactId&gt;jjwt&lt;/artifactId&gt;
        &lt;version&gt;0.9.1&lt;/version&gt;
    &lt;/dependency&gt;
    &lt;dependency&gt;
        &lt;groupId&gt;com.alibaba&lt;/groupId&gt;
        &lt;artifactId&gt;fastjson&lt;/artifactId&gt;
        &lt;version&gt;1.2.76&lt;/version&gt;
    &lt;/dependency&gt;
&lt;/dependencies&gt;

&lt;build&gt;
    &lt;plugins&gt;
        &lt;plugin&gt;
            &lt;groupId&gt;org.springframework.boot&lt;/groupId&gt;
            &lt;artifactId&gt;spring-boot-maven-plugin&lt;/artifactId&gt;
            &lt;configuration&gt;
                &lt;excludes&gt;
                    &lt;exclude&gt;
                        &lt;groupId&gt;org.projectlombok&lt;/groupId&gt;
                        &lt;artifactId&gt;lombok&lt;/artifactId&gt;
                    &lt;/exclude&gt;
                &lt;/excludes&gt;
            &lt;/configuration&gt;
        &lt;/plugin&gt;
    &lt;/plugins&gt;
&lt;/build&gt;

</project>

配置 application.properties

server.port=8080
server.servlet.context-path=/activiti7
spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/demo?useUnicode=true&characterEncoding=utf8&nullCatalogMeansCurrent=true
spring.datasource.username=root
spring.datasource.password=123456
spring.jpa.database=mysql
spring.jpa.open-in-view=true
spring.jpa.properties.hibernate.enable_lazy_load_no_trans=true
spring.jpa.show-sql=true
spring.redis.host=192.168.28.31
spring.redis.port=6379
spring.redis.password=123456
spring.redis.database=1
spring.activiti.database-schema-update=true
spring.activiti.db-history-used=true
spring.activiti.history-level=full
spring.activiti.check-process-definitions=false
spring.activiti.deployment-mode=never-fail

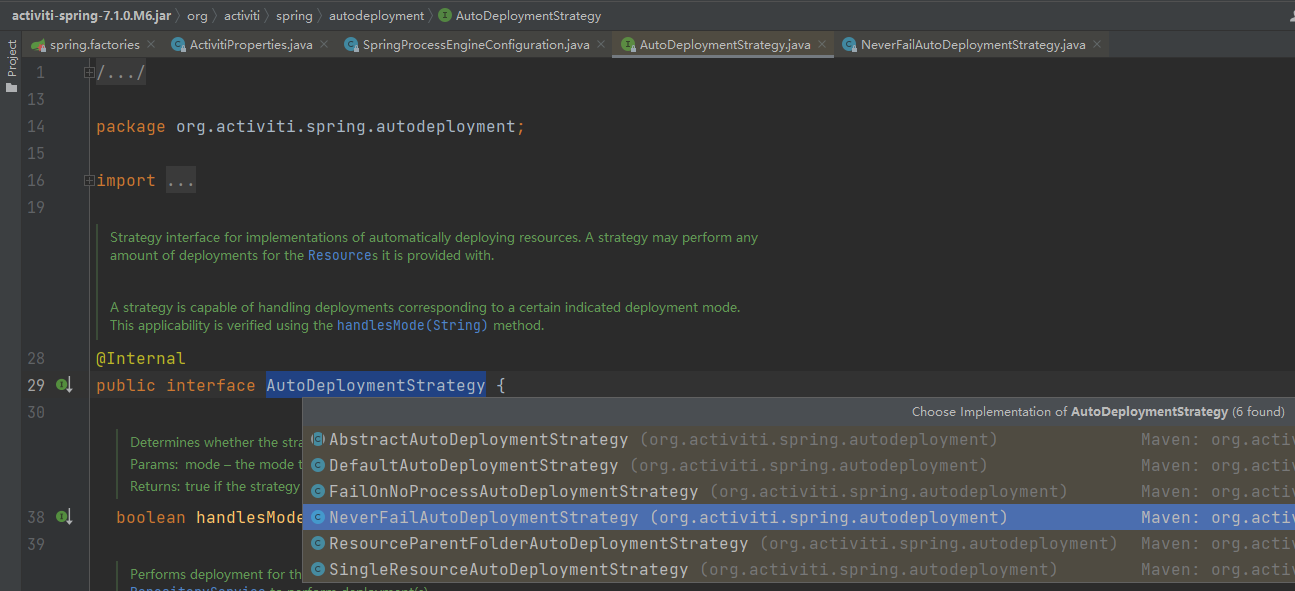

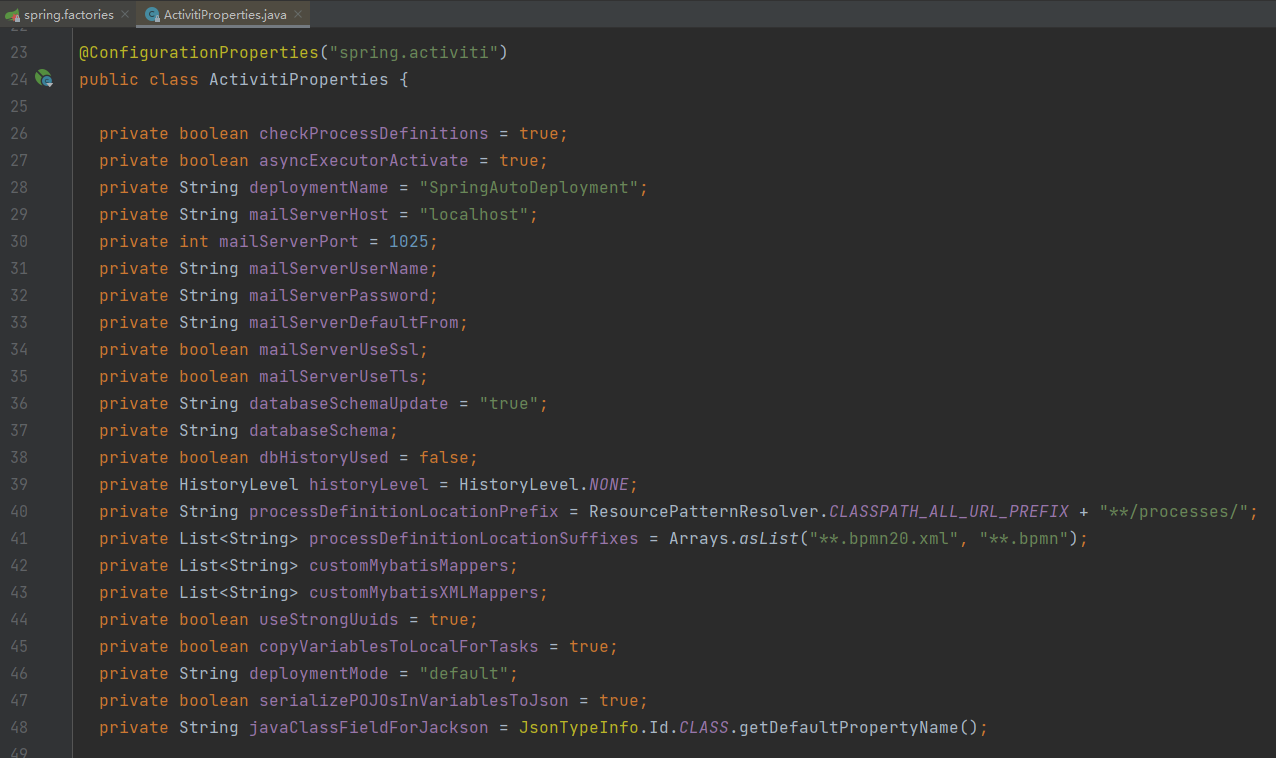

代码是最好的老师，查看代码所有配置项都一目了然

这里最好关闭自动部署，不然每次项目启动的时候就会自动部署一次

3. 集成 Spring Security

详见我另一篇《基于 Spring Security 的前后端分离的权限控制系统》

3.1. 实体类

权限

package com.cjs.example.entity;
import lombok.Getter;
import lombok.Setter;
import javax.persistence.*;
import java.io.Serializable;
import java.util.Set;
/**


菜单表


@Author ChengJianSheng


@Date 2021/6/12
*/
@Setter
@Getter
@Entity
@Table(name = "sys_menu")
public class SysMenuEntity implements Serializable {
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
@Column(name = "id")
private Integer id;
/**

资源编码
*/
@Column(name = "code")
private String code;

/**

资源名称
*/
@Column(name = "name")
private String name;

/**

菜单 / 按钮 URL
*/
@Column(name = "url")
private String url;

/**

资源类型（1: 菜单，2: 按钮）
*/
@Column(name = "type")
private Integer type;

/**

父级菜单 ID
*/
@Column(name = "pid")
private Integer pid;

/**

排序号
*/
@Column(name = "sort")
private Integer sort;

@ManyToMany(mappedBy = "menus")
private Set<SysRoleEntity> roles;


}

角色

package com.cjs.example.entity;
import lombok.Getter;
import lombok.Setter;
import javax.persistence.*;
import java.io.Serializable;
import java.util.Set;
/**


角色表


@Author ChengJianSheng


@Date 2021/6/12
*/
@Setter
@Getter
@Entity
@Table(name = "sys_role")
public class SysRoleEntity implements Serializable {
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
@Column(name = "id")
private Integer id;
/**

角色名称
*/
@Column(name = "name")
private String name;

@ManyToMany(mappedBy = "roles")
private Set<SysUserEntity> users;
@ManyToMany
@JoinTable(name = "sys_role_menu",
joinColumns = {@JoinColumn(name = "role_id", referencedColumnName = "id")},
inverseJoinColumns = {@JoinColumn(name = "menu_id", referencedColumnName = "id")})
private Set<SysMenuEntity> menus;
@ManyToMany
@JoinTable(name = "sys_dept_role",
joinColumns = {@JoinColumn(name = "role_id", referencedColumnName = "id")},
inverseJoinColumns = {@JoinColumn(name = "dept_id", referencedColumnName = "id")})
private Set<SysDeptEntity> depts;


}

部门

package com.cjs.example.entity;
import lombok.Getter;
import lombok.Setter;
import javax.persistence.*;
import java.io.Serializable;
import java.util.Set;
/**


部门表


@Author ChengJianSheng


@Date 2021/6/12
*/
@Setter
@Getter
@Entity
@Table(name = "sys_dept")
public class SysDeptEntity implements Serializable {
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
@Column(name = "id")
private Integer id;
/**

部门名称
*/
@Column(name = "name")
private String name;

/**

父级部门 ID
*/
@Column(name = "pid")
private Integer pid;

/**

组对应的角色
*/
@ManyToMany(mappedBy = "depts")
private Set<SysRoleEntity> roles;
}

用户

package com.cjs.example.entity;
import lombok.Getter;
import lombok.Setter;
import javax.persistence.*;
import java.io.Serializable;
import java.time.LocalDate;
import java.util.Set;
/**


用户表


@Author ChengJianSheng


@Date 2021/6/12
*/
@Setter
@Getter
@Entity
@Table(name = "sys_user")
public class SysUserEntity implements Serializable {
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
@Column(name = "id")
private Integer id;
@Column(name = "username")
private String username;
@Column(name = "password")
private String password;
@Column(name = "mobile")
private String mobile;
@Column(name = "enabled")
private Integer enabled;
@Column(name = "create_time")
private LocalDate createTime;
@Column(name = "update_time")
private LocalDate updateTime;
@OneToOne
@JoinColumn(name = "dept_id")
private SysDeptEntity dept;
@ManyToMany
@JoinTable(name = "sys_user_role",
joinColumns = {@JoinColumn(name = "user_id", referencedColumnName = "id")},
inverseJoinColumns = {@JoinColumn(name = "role_id", referencedColumnName = "id")})
private Set<SysRoleEntity> roles;


}

3.2. 自定义 UserDetailsService

package com.cjs.example.domain;
import lombok.Setter;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import java.util.Collection;
import java.util.Set;
/**


@Author ChengJianSheng


@Date 2021/6/12


@see User


@see User
*/
@Setter
public class MyUserDetails implements UserDetails {
private String username;
private String password;
private boolean enabled;
private Set<SimpleGrantedAuthority> authorities;
public MyUserDetails(String username, String password, boolean enabled, Set<SimpleGrantedAuthority> authorities) {
this.username = username;
this.password = password;
this.enabled = enabled;
this.authorities = authorities;
}
@Override
public Collection<? extends GrantedAuthority> getAuthorities() {
return authorities;
}
@Override
public String getPassword() {
return password;
}
@Override
public String getUsername() {
return username;
}
@Override
public boolean isAccountNonExpired() {
return true;
}
@Override
public boolean isAccountNonLocked() {
return true;
}
@Override
public boolean isCredentialsNonExpired() {
return true;
}
@Override
public boolean isEnabled() {
return enabled;
}
}

MyUserDetailsService

package com.cjs.example.service;
import com.cjs.example.domain.MyUserDetails;
import com.cjs.example.entity.SysMenuEntity;
import com.cjs.example.entity.SysRoleEntity;
import com.cjs.example.entity.SysUserEntity;
import com.cjs.example.repository.SysUserRepository;
import org.apache.commons.lang3.StringUtils;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
import java.util.HashSet;
import java.util.Set;
import java.util.stream.Collectors;
/**


@Author ChengJianSheng


@Date 2021/6/12
*/
@Service
public class MyUserDetailsService implements UserDetailsService {
@Resource
private SysUserRepository sysUserRepository;
@Override
public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
SysUserEntity sysUserEntity = sysUserRepository.findByUsername(username);
Set<SysRoleEntity> userRoles = sysUserEntity.getRoles();
Set<SysRoleEntity> deptRoles = sysUserEntity.getDept().getRoles();
Set<SysRoleEntity> roleSet = new HashSet<>();
roleSet.addAll(userRoles);
roleSet.addAll(deptRoles);
 Set&lt;SimpleGrantedAuthority&gt; authorities = roleSet.stream().flatMap(role-&gt;role.getMenus().stream())
         .filter(menu-&gt; StringUtils.isNotBlank(menu.getCode()))
         .map(SysMenuEntity::getCode)



//                .map(e -> "ROLE_" + e.getCode())
.map(SimpleGrantedAuthority::new)
.collect(Collectors.toSet());
    <span class="hljs-keyword">return</span> <span class="hljs-keyword">new</span> <span class="hljs-title class_">MyUserDetails</span>(sysUserEntity.getUsername(), sysUserEntity.getPassword(), <span class="hljs-number">1</span>==sysUserEntity.getEnabled(), authorities);
}

}

如果加了“ROLE_”前缀，那么比较的时候应该用 SimpleGrantedAuthority 进行比较

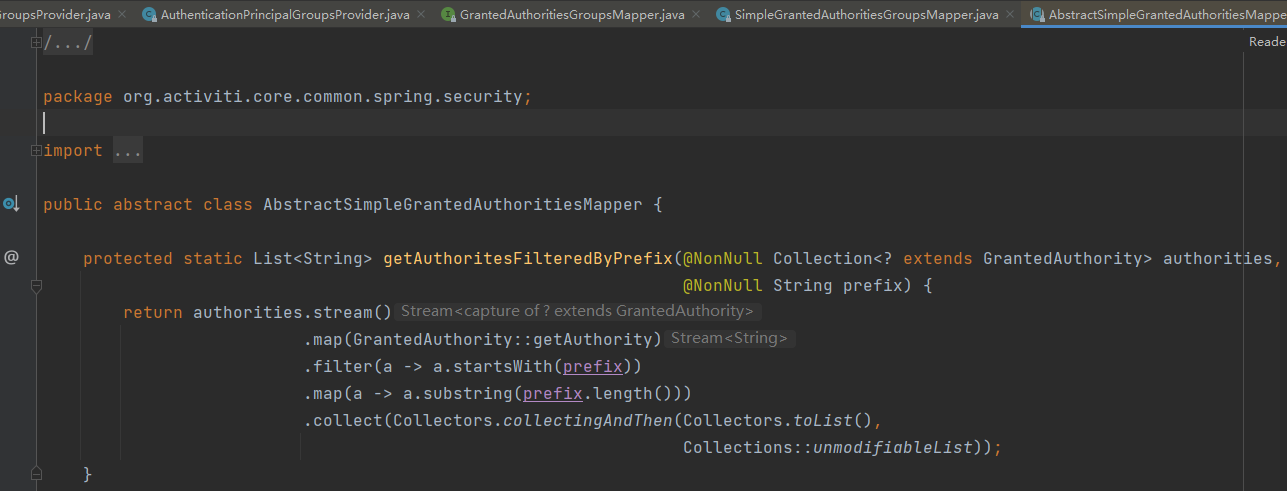

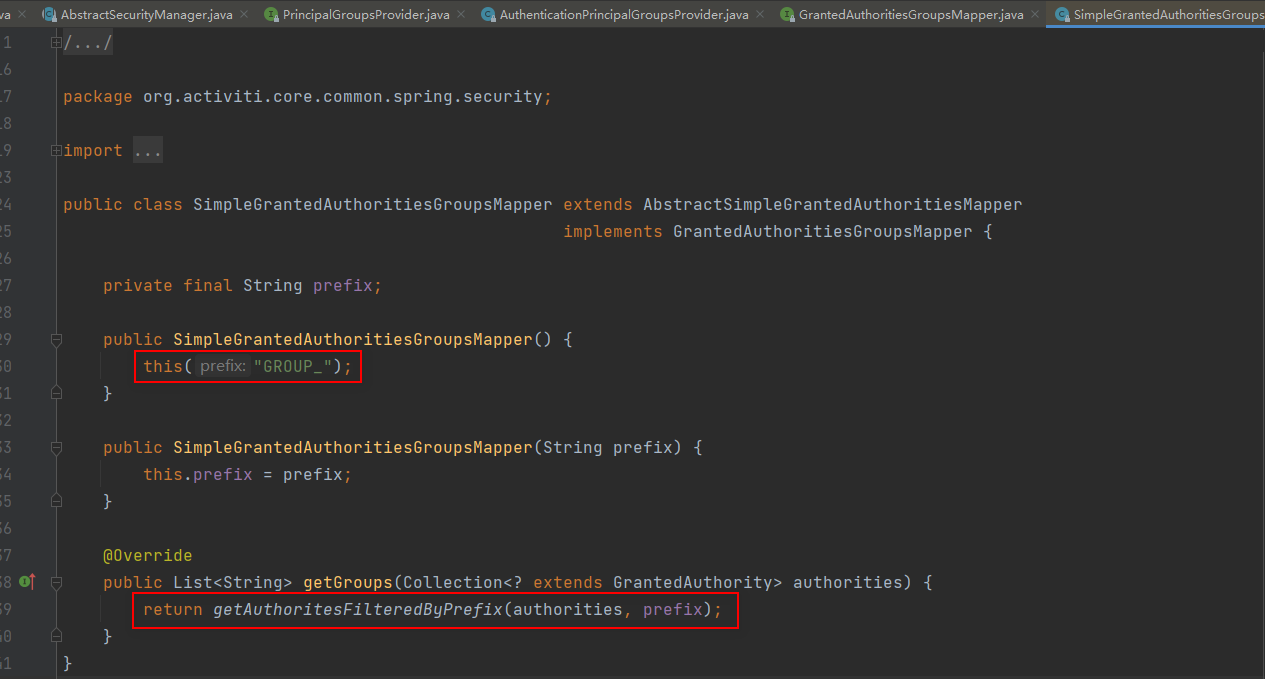

这里姑且不加这个前缀了，因为后面集成 Activiti 的时候用户组有一个前缀 GROUP_

package com.cjs.example.service;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.AuthorityUtils;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.stereotype.Component;
import java.util.Set;
import java.util.stream.Collectors;
@Component("myAccessDecisionService")
public class MyAccessDecisionService {
<span class="hljs-keyword">public</span> <span class="hljs-type">boolean</span> <span class="hljs-title function_">hasPermission</span><span class="hljs-params">(String permission)</span> {
    <span class="hljs-type">Authentication</span> <span class="hljs-variable">authentication</span> <span class="hljs-operator">=</span> SecurityContextHolder.getContext().getAuthentication();
    <span class="hljs-type">Object</span> <span class="hljs-variable">principal</span> <span class="hljs-operator">=</span> authentication.getPrincipal();
    <span class="hljs-keyword">if</span> (principal <span class="hljs-keyword">instanceof</span> UserDetails) {
        <span class="hljs-type">UserDetails</span> <span class="hljs-variable">userDetails</span> <span class="hljs-operator">=</span> (UserDetails) principal;
        Set&lt;String&gt; set = userDetails.getAuthorities().stream().map(GrantedAuthority::getAuthority).collect(Collectors.toSet());
        <span class="hljs-keyword">return</span> set.contains(permission);

//            //  AuthorityUtils.createAuthorityList(permission);
//            SimpleGrantedAuthority simpleGrantedAuthority = new SimpleGrantedAuthority(permission);
//            return userDetails.getAuthorities().contains(simpleGrantedAuthority);
}
return false;
}
}

3.3. 自定义 Token 过滤器

package com.cjs.example.filter;
import com.alibaba.fastjson.JSON;
import com.cjs.example.domain.MyUserDetails;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.stereotype.Component;
import org.springframework.web.filter.OncePerRequestFilter;
import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.concurrent.TimeUnit;
/**


@Author ChengJianSheng


@Date 2021/6/17
*/
@Component
public class TokenFilter extends OncePerRequestFilter {
@Autowired
private StringRedisTemplate stringRedisTemplate;
@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain chain) throws ServletException, IOException {
String token = request.getHeader("token");
String key = "TOKEN:" + token;
if (StringUtils.isNotBlank(token)) {
String value = stringRedisTemplate.opsForValue().get(key);
if (StringUtils.isNotBlank(value)) {
MyUserDetails user = JSON.parseObject(value, MyUserDetails.class);
if (null != user && null == SecurityContextHolder.getContext().getAuthentication()) {
UsernamePasswordAuthenticationToken authenticationToken = new UsernamePasswordAuthenticationToken(user, null, user.getAuthorities());
SecurityContextHolder.getContext().setAuthentication(authenticationToken);
             <span class="hljs-comment">//  刷新token</span>
             <span class="hljs-comment">//  如果生存时间小于10分钟，则再续1小时</span>
             <span class="hljs-type">long</span> <span class="hljs-variable">time</span> <span class="hljs-operator">=</span> stringRedisTemplate.getExpire(key);
             <span class="hljs-keyword">if</span> (time &lt; <span class="hljs-number">600</span>) {
                 stringRedisTemplate.expire(key, (time + <span class="hljs-number">3600</span>), TimeUnit.SECONDS);
             }
         }
     }
 }

 chain.doFilter(request, response);

}
}

3.3. WebSecurityConfig

package com.cjs.example.config;
import com.cjs.example.filter.TokenFilter;
import com.cjs.example.handler.*;
import com.cjs.example.service.MyUserDetailsService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
/**


@Author ChengJianSheng


@Date 2021/6/12
*/
@EnableGlobalMethodSecurity(prePostEnabled = true)
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
@Autowired
private MyUserDetailsService myUserDetailsService;
@Autowired
private MyAuthenticationSuccessHandler myAuthenticationSuccessHandler;
@Autowired
private MyAuthenticationFailureHandler myAuthenticationFailureHandler;
@Autowired
private MyLogoutSuccessHandler myLogoutSuccessHandler;
@Autowired
private TokenFilter tokenFilter;
@Override
protected void configure(AuthenticationManagerBuilder auth) throws Exception {
auth.userDetailsService(myUserDetailsService).passwordEncoder(passwordEncoder());
}
@Override
protected void configure(HttpSecurity http) throws Exception {
http.formLogin()
.successHandler(myAuthenticationSuccessHandler)
.failureHandler(myAuthenticationFailureHandler)
.and()
.logout().logoutSuccessHandler(myLogoutSuccessHandler)
.and()
.authorizeRequests()
.antMatchers("/activiti7/login").permitAll()
.anyRequest().authenticated()
.and()
.exceptionHandling()
.accessDeniedHandler(new MyAccessDeniedHandler())
.authenticationEntryPoint(new MyAuthenticationEntryPoint())
.and()
.sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
.maximumSessions(1)
.maxSessionsPreventsLogin(false)
.expiredSessionStrategy(new MyExpiredSessionStrategy());
 http<span class="hljs-selector-class">.addFilterBefore</span>(tokenFilter, UsernamePasswordAuthenticationFilter.class);

 http<span class="hljs-selector-class">.csrf</span>()<span class="hljs-selector-class">.disable</span>();

}
public PasswordEncoder passwordEncoder() {
return new BCryptPasswordEncoder();
}


}

至此一切都很顺利，毕竟之前也写过很多遍。

package com.cjs.example.controller;
import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
/**


@Author ChengJianSheng


@Date 2021/6/12
*/
@RestController
@RequestMapping("/hello")
public class HelloController {
@PreAuthorize("@myAccessDecisionService.hasPermission('hello:sayHello')")
@GetMapping("/sayHello")
public String sayHello() {
return "hello";
}
@PreAuthorize("@myAccessDecisionService.hasPermission('hello:sayHi')")
@GetMapping("/sayHi")
public String sayHi() {
return "hi";
}
}

4. 集成 Activiti7

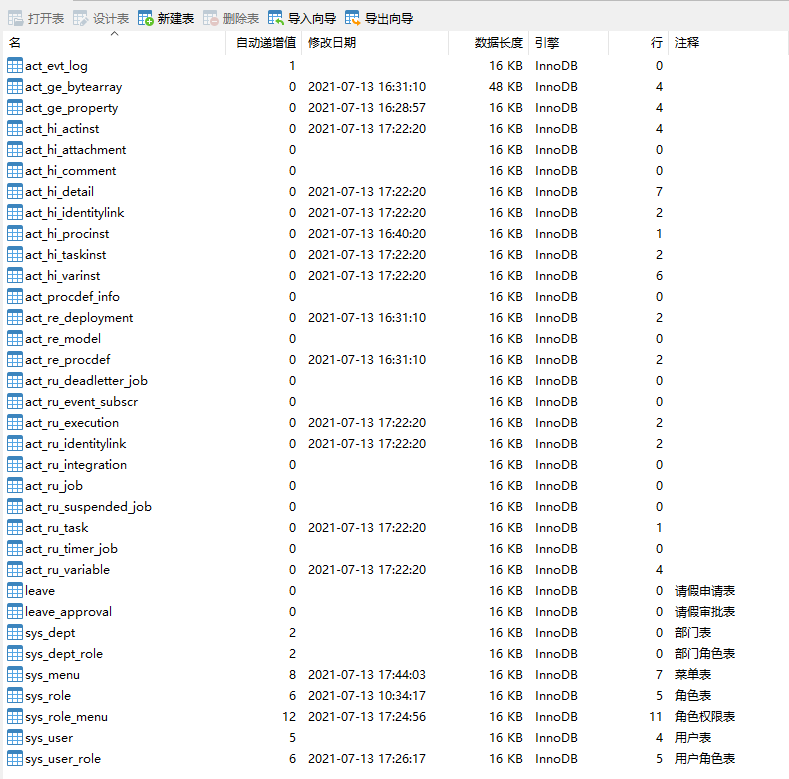

启动项目以后，activiti 相关表已经创建好了

接下来，以简单的请假为例来演示

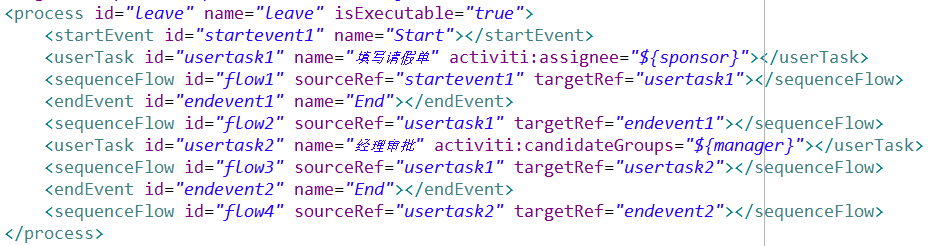

<process id="leave" name="leave" isExecutable="true">
    <startEvent id="startevent1" name="Start"></startEvent>
    <userTask id="usertask1" name="填写请假单" activiti:assignee="${sponsor}"></userTask>
    <sequenceFlow id="flow1" sourceRef="startevent1" targetRef="usertask1"></sequenceFlow>
    <endEvent id="endevent1" name="End"></endEvent>
    <sequenceFlow id="flow2" sourceRef="usertask1" targetRef="endevent1"></sequenceFlow>
    <userTask id="usertask2" name="经理审批" activiti:candidateGroups="${manager}"></userTask>
    <sequenceFlow id="flow3" sourceRef="usertask1" targetRef="usertask2"></sequenceFlow>
    <endEvent id="endevent2" name="End"></endEvent>
    <sequenceFlow id="flow4" sourceRef="usertask2" targetRef="endevent2"></sequenceFlow>
</process>

4.1. 部署流程定义

package com.cjs.example.controller;
import com.cjs.example.domain.RespResult;
import com.cjs.example.util.ResultUtils;
import lombok.extern.slf4j.Slf4j;
import org.activiti.engine.RepositoryService;
import org.activiti.engine.repository.Deployment;
import org.activiti.engine.repository.ProcessDefinition;
import org.apache.commons.io.IOUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.InputStream;
import java.util.zip.ZipInputStream;
/**


@Author ChengJianSheng


@Date 2021/7/12
*/
@Slf4j
@RestController
@RequestMapping("/deploy")
public class DeploymentController {
@Autowired
private RepositoryService repositoryService;
/**


部署


@param file  ZIP 压缩包文件


@param processName   流程名称


@return
*/
@PostMapping("/upload")
public RespResult<String> upload(@RequestParam("zipFile") MultipartFile file, @RequestParam("processName") String processName) {
String originalFilename = file.getOriginalFilename();
if (!originalFilename.endsWith("zip")) {
return ResultUtils.error("文件格式错误");
}
ProcessDefinition processDefinition = null;
try {
ZipInputStream zipInputStream = new ZipInputStream(file.getInputStream());
Deployment deployment = repositoryService.createDeployment().addZipInputStream(zipInputStream).name(processName).deploy();
 processDefinition = repositoryService.createProcessDefinitionQuery().deploymentId(deployment.getId()).singleResult();

} catch (IOException e) {
log.error("流程部署失败！原因: {}", e.getMessage(), e);
}
return ResultUtils.success(processDefinition.getId());
}


/**

查看流程图
@param deploymentId  部署 ID
@param resourceName  图片名称
@param response
@return
*/
@GetMapping("/getDiagram")
public void getDiagram(@RequestParam("deploymentId") String deploymentId, @RequestParam("resourceName") String resourceName, HttpServletResponse response) {
InputStream inputStream = repositoryService.getResourceAsStream(deploymentId, resourceName);
//        response.setContentType(MediaType.IMAGE_PNG_VALUE);
try {
IOUtils.copy(inputStream, response.getOutputStream());
} catch (IOException e) {
e.printStackTrace();
} finally {
IOUtils.closeQuietly(inputStream);
}
}
}

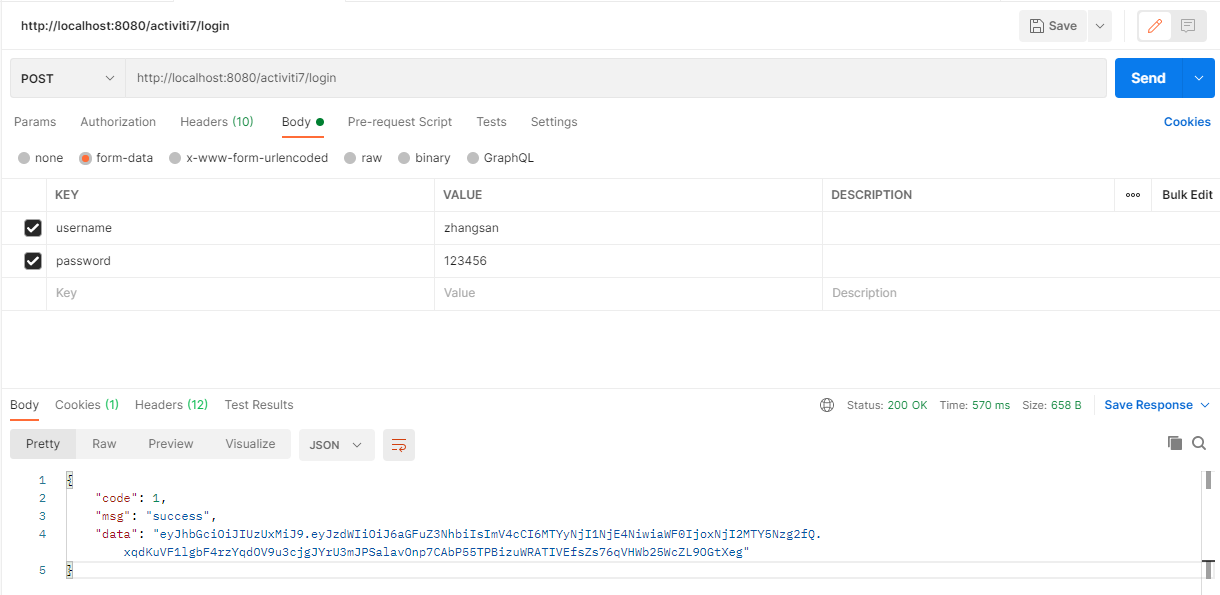

首先登录一下

然后，将流程图文件打成 zip 压缩包

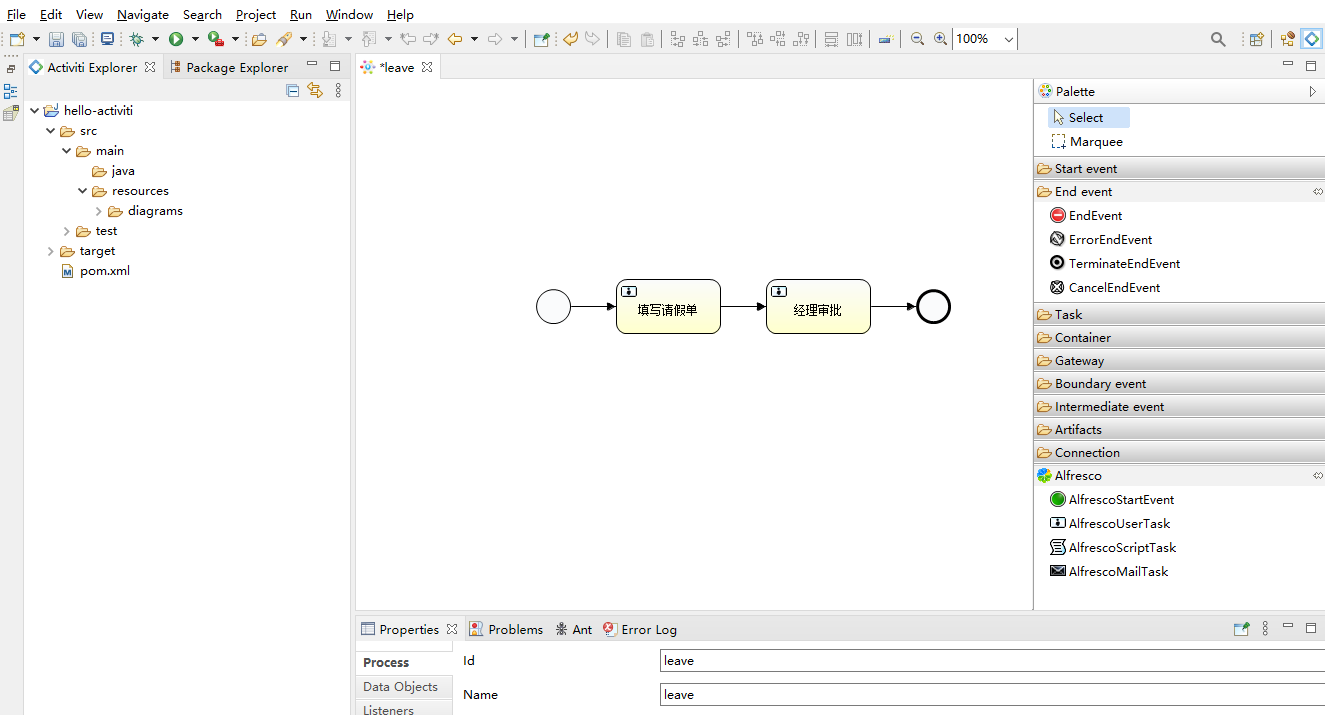

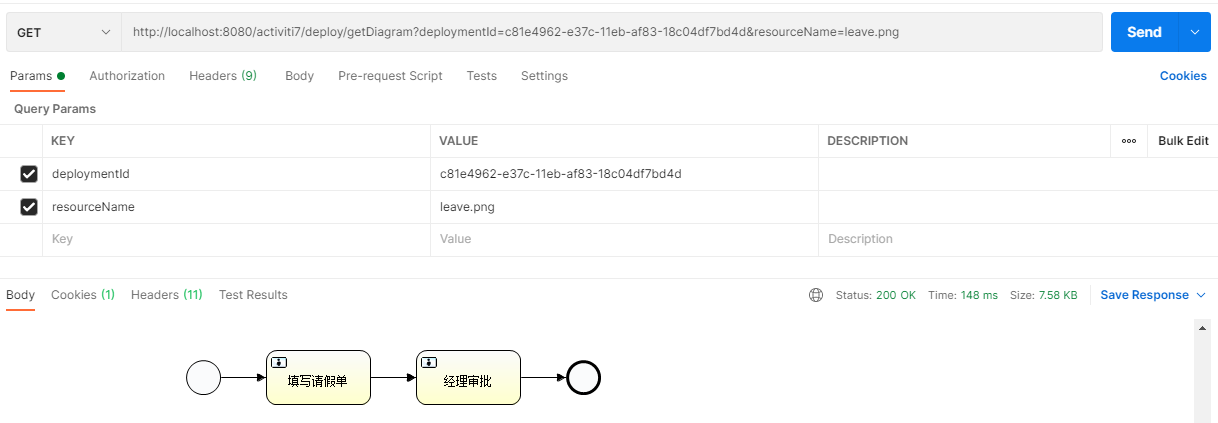

查看流程图

4.2. 启动流程实例

最开始，我是这样写的

ProcessInstance processInstance = processRuntime.start(ProcessPayloadBuilder
                    .start()
                    .withProcessDefinitionId(processDefinitionId)
                    .withVariable("sponsor", authentication.getName())
                    .build());

当我这样写了以后，第一个问题出现了，没有权限访问

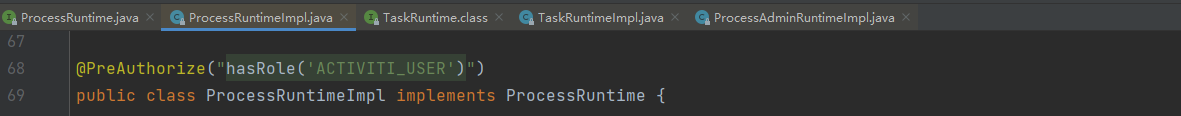

查看代码之后，我发现调用 ProcessRuntime 的方法需要当前登录用户有“ACTIVITI_USER” 权限

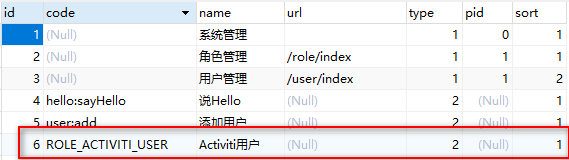

于是，我在数据库 sys_menu 表里加了一条数据

重新登录后，zhangsan 可以调用 ProcessRuntime 里面的方法了

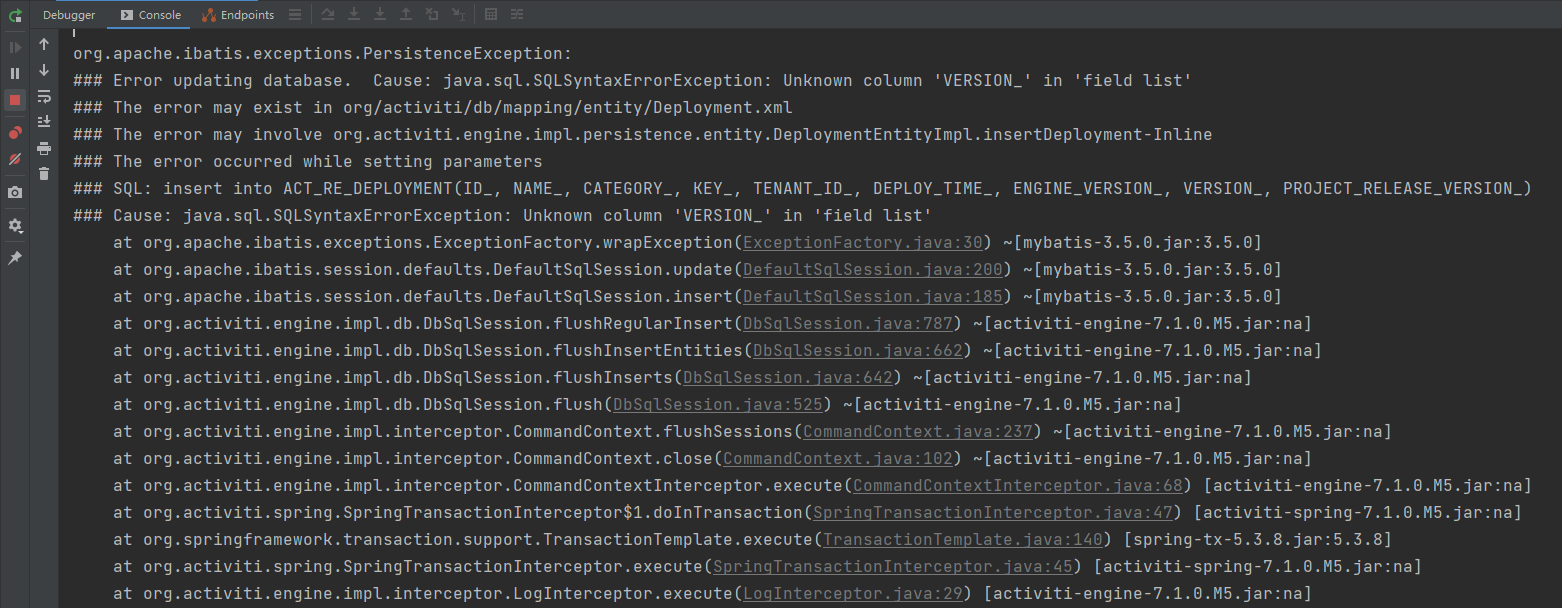

很快，第二个问题出现了，当我用 ProcessRuntime#start() 启动流程实例的时候报错了

org.activiti.engine.ActivitiException: Query return 2 results instead of max 1
	at org.activiti.engine.impl.DeploymentQueryImpl.executeSingleResult(DeploymentQueryImpl.java:213) ~[activiti-engine-7.1.0.M6.jar:na]
	at org.activiti.engine.impl.DeploymentQueryImpl.executeSingleResult(DeploymentQueryImpl.java:30) ~[activiti-engine-7.1.0.M6.jar:na]

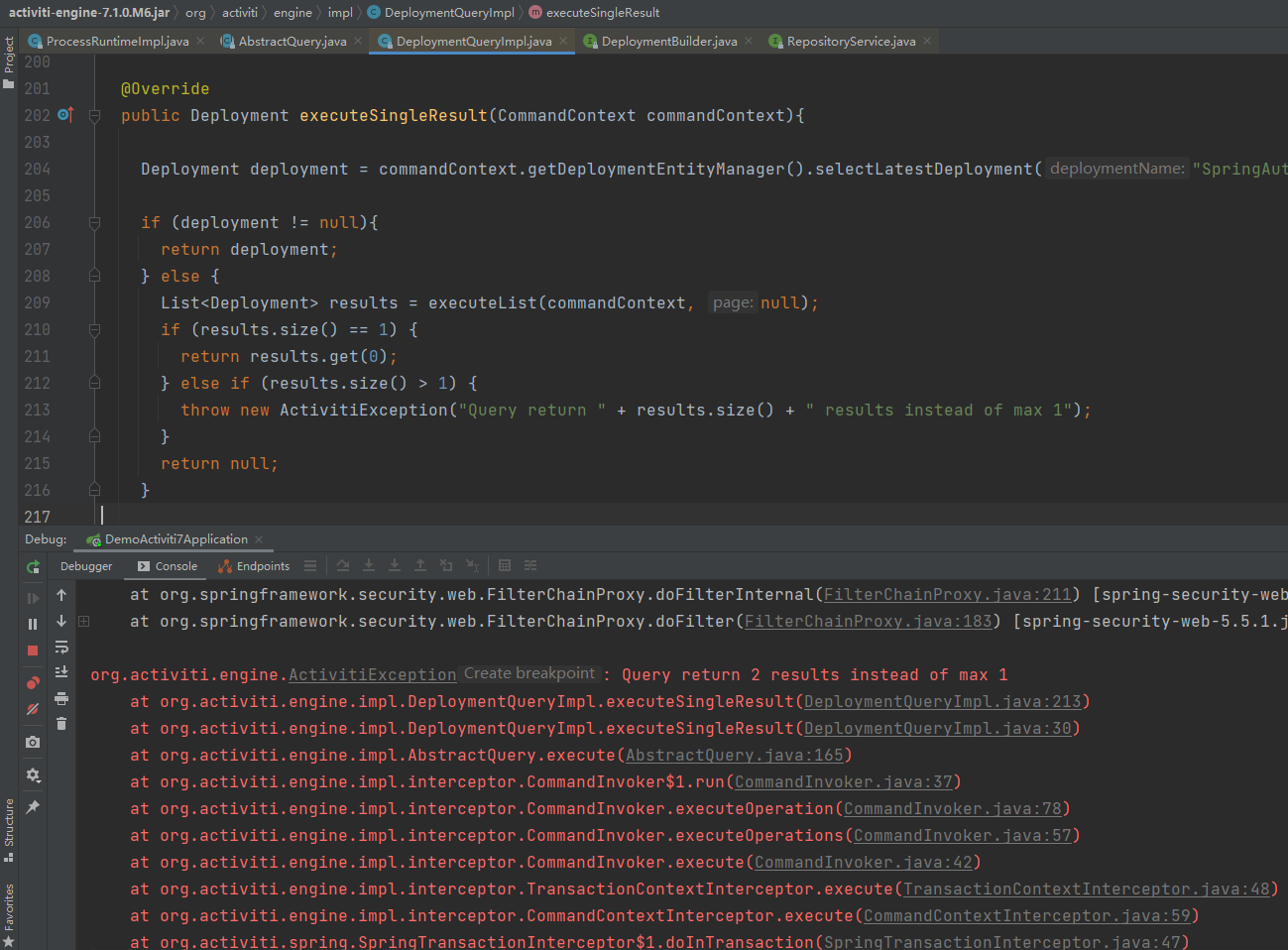

查看代码，终于找到问题所在了

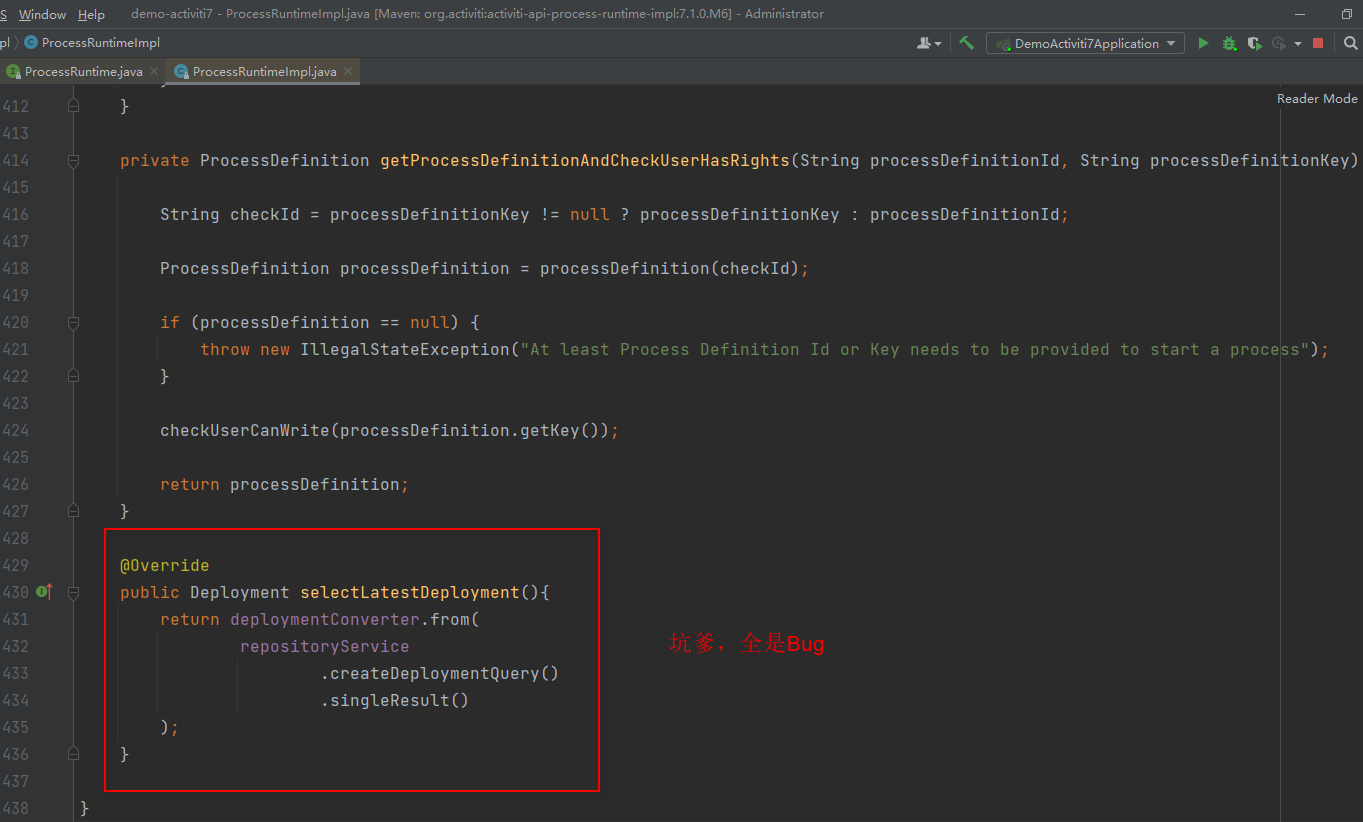

这明显就是 Activiti 的 Bug，查询所有部署的流程没有加任何查询条件，吐了

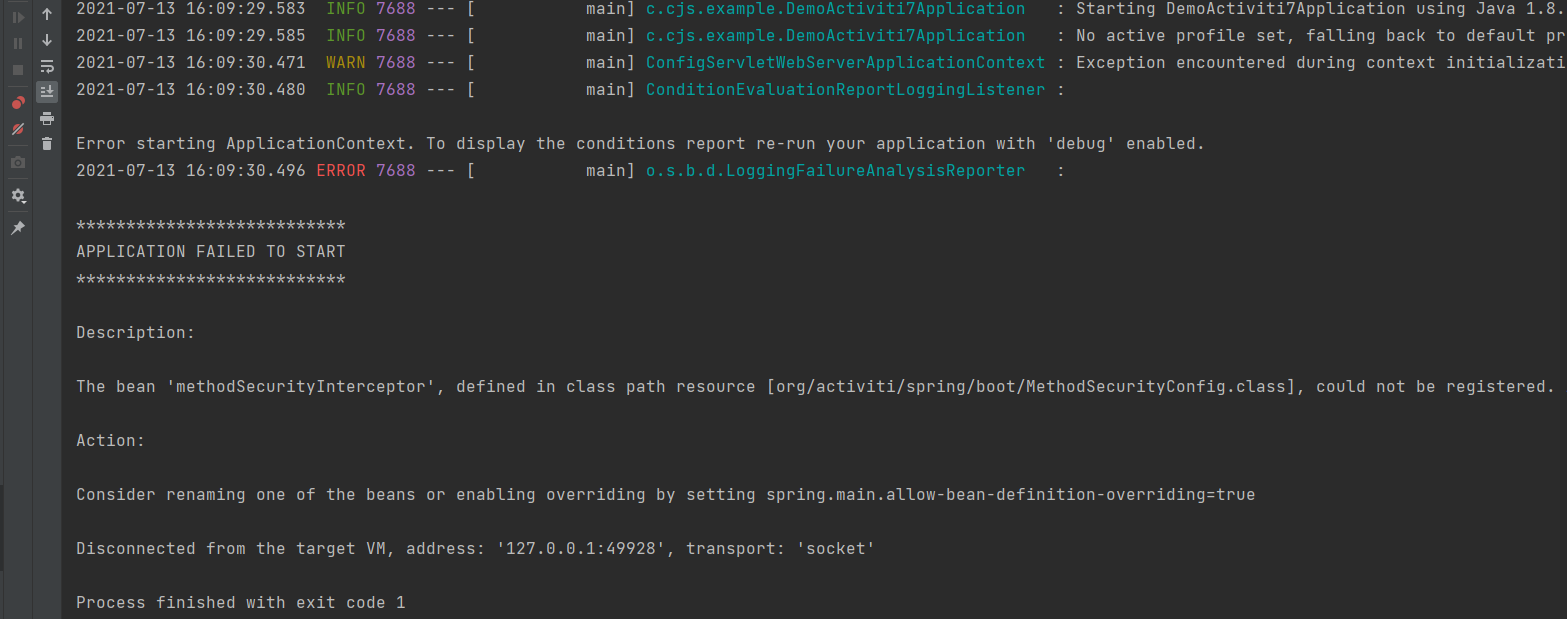

于是，百度了一下，网上有人建议换一个版本，于是我将 activiti-spring-boot-starter 的版本从“7.1.0.M6”换成了“7.1.0.M5”，呵呵，又一个错，缺少字段

原来 M6 和 M5 的表结构不一样。我又将版本将至“7.1.0.M4”，这次直接起不来了

没办法，版本改回 7.1.0.M6，不用 ProcessRuntime，改用原来的 RuntimeService

package com.cjs.example.controller;
import com.cjs.example.domain.RespResult;
import com.cjs.example.util.ResultUtils;
import org.activiti.api.process.model.ProcessInstance;
import org.activiti.api.process.model.builders.ProcessPayloadBuilder;
import org.activiti.api.process.runtime.ProcessRuntime;
import org.activiti.engine.RuntimeService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.annotation.AuthenticationPrincipal;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import java.util.HashMap;
import java.util.Map;
/**


@Author ChengJianSheng


@Date 2021/7/12
*/
@RestController
@RequestMapping("/processInstance")
public class ProcessInstanceController {
@Autowired
private ProcessRuntime processRuntime;
@Autowired
private RuntimeService runtimeService;
@GetMapping("/start")
public RespResult start(@RequestParam("processDefinitionId") String processDefinitionId) {
Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
org.activiti.engine.runtime.ProcessInstance processInstance = null;
try {
//            ProcessInstance processInstance = processRuntime.start(ProcessPayloadBuilder
//                    .start()
//                    .withProcessDefinitionId(processDefinitionId)
//                    .withVariable("sponsor", authentication.getName())
//                    .build());
     Map&lt;String, Object&gt; variables = new HashMap&lt;&gt;();
     variables.put(<span class="hljs-string">"sponsor"</span>, authentication.getName());
     processInstance = runtimeService.startProcessInstanceById(processDefinitionId, variables);
 } <span class="hljs-keyword">catch</span> (Exception ex) {
     ex.printStackTrace();
 }
 <span class="hljs-keyword">return</span> ResultUtils.success(processInstance);

}
}

这里注意 org.activiti.engine.runtime.ProcessInstance 和 org.activiti.api.process.model.ProcessInstance 别搞混了

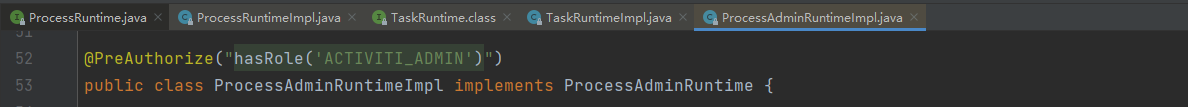

查看流程定义

package com.cjs.example.controller;
import com.cjs.example.domain.RespResult;
import com.cjs.example.util.ResultUtils;
import org.activiti.api.process.model.ProcessDefinition;
import org.activiti.api.process.runtime.ProcessAdminRuntime;
import org.activiti.api.process.runtime.ProcessRuntime;
import org.activiti.api.runtime.shared.query.Page;
import org.activiti.api.runtime.shared.query.Pageable;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
/**


@Author ChengJianSheng


@Date 2021/7/12
*/
@RestController
@RequestMapping("/processDefinition")
public class ProcessDefinitionController {
@Autowired
private ProcessAdminRuntime processAdminRuntime;
//    private ProcessRuntime processRuntime;
@GetMapping("/list")
public RespResult<Page<ProcessDefinition>> getProcessDefinition(){
Page<ProcessDefinition> processDefinitionPage = processAdminRuntime.processDefinitions(Pageable.of(0, 10));
return ResultUtils.success(processDefinitionPage);
}
}

4.3. 查询待办任务并完成

按照我们的流程定义，zhangsan 提交了请假申请，所以第一个任务是 zhangsan 的，先让 zhangsan 登录

Page<Task> page = taskRuntime.tasks(Pageable.of(0, 10));
if (null != page && page.getTotalItems() > 0) {
for (Task task : page.getContent()) {
taskRuntime.complete(TaskPayloadBuilder.complete().withTaskId(task.getId()).build());
}
}

由于第一个任务是一个个人任务，所以不需要先认领任务，直接去完成即可

第二个任务是一个组任务，而且我还用了流程变量，因此要么在启动流程实例的时候就给这个流程变量赋值，要么在上一个任务完成时给变量赋值。

这里，我用的是候选组（Candidate Groups），而不是候选者（Candidate Users）。二者差不多，都是组任务，区别在于如果用候选者的话需要列出所有候选用户并用逗号分隔，如果用候选组的话就只需要写组名即可，多个组之间用逗号分隔。

本例中，我也不用流程变量，例如直接写 activiti:candidateGroups="caiwu"

taskRuntime.complete(TaskPayloadBuilder.complete().withTaskId(task.getId()).withVariable("manager", "caiwu").build());

有没有发现，这里查询任务的时候没有指定要查谁的任务，完成任务的时候也没有指定是谁完成的，这都是 Spring Security 的功劳

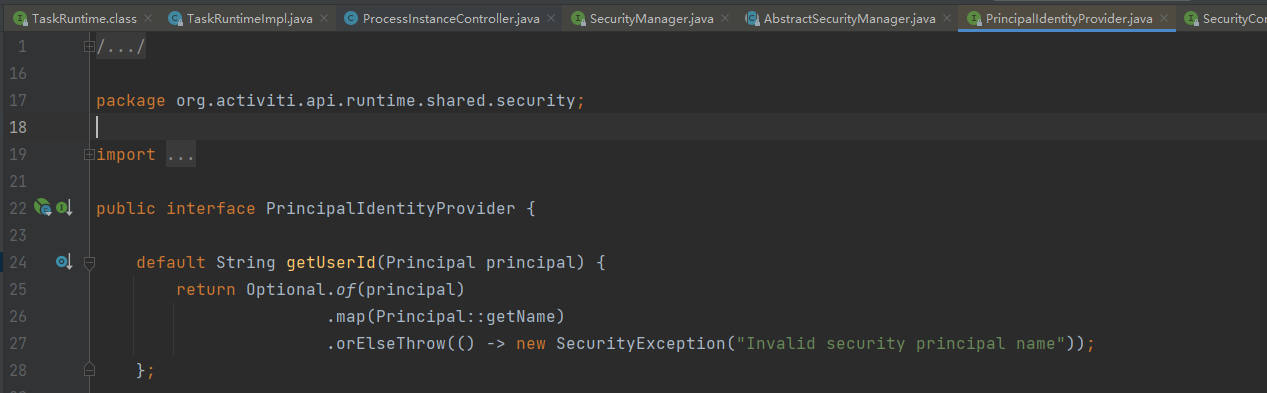

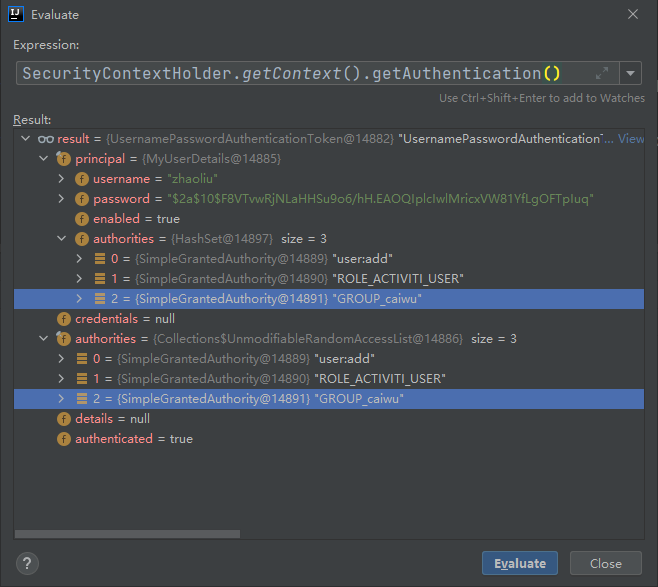

到这里可以看出，取的是当前登录用户，即 SecurityContextHolder.getContext().getAuthentication().getName()

SecurityContextHolder.getContext().getAuthentication().getName()

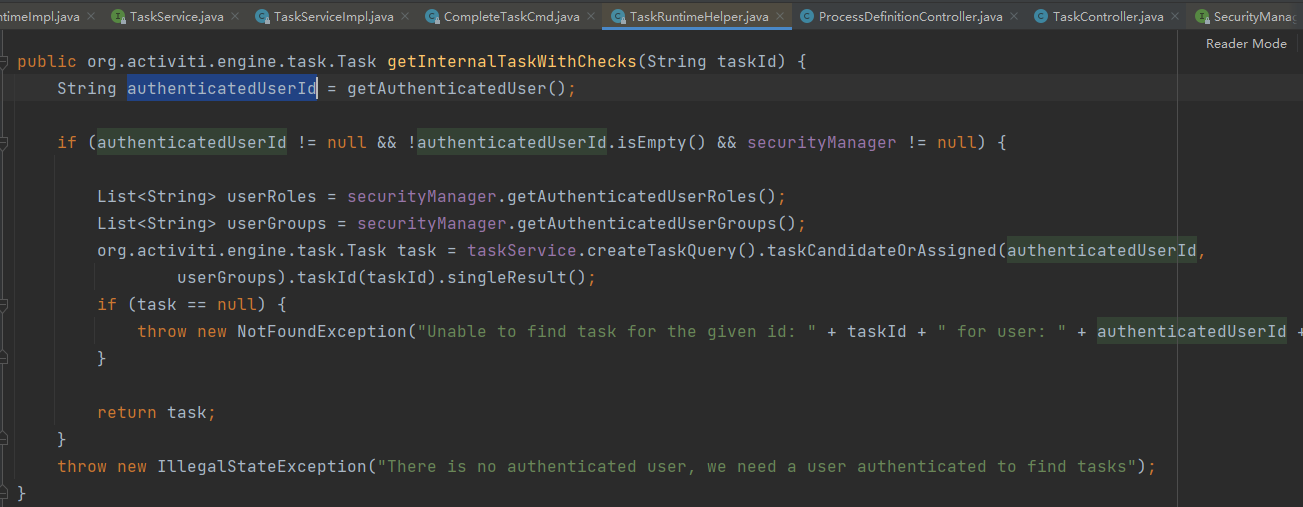

同理，完成任务

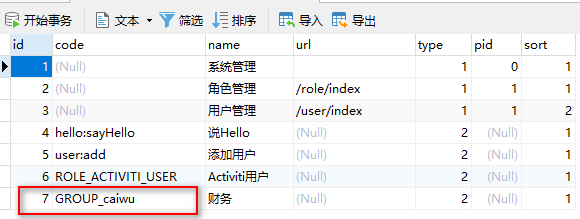

接下来的是一个组任务，任务必须由“canwu”这个组的人去完成，为了让 lisi 能看到这个任务，需要在 sys_menu 表中加一条记录

当 lisi 登录进来以后，调用 taskRuntime.tasks(Pageable.of(0, 10)) 查询自己的任务时

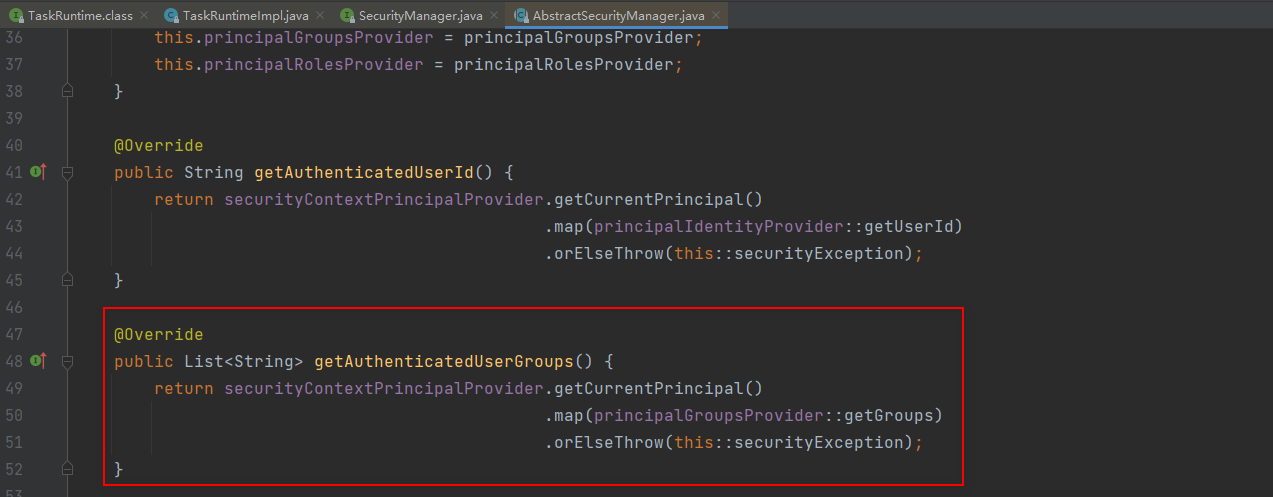

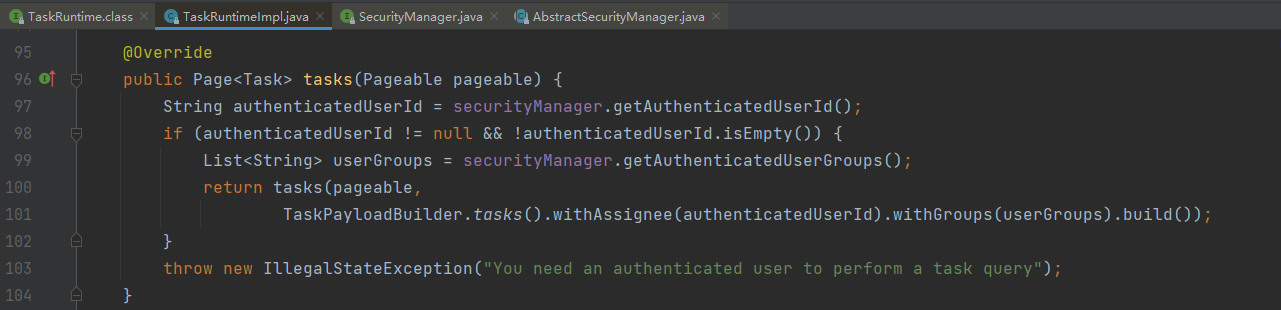

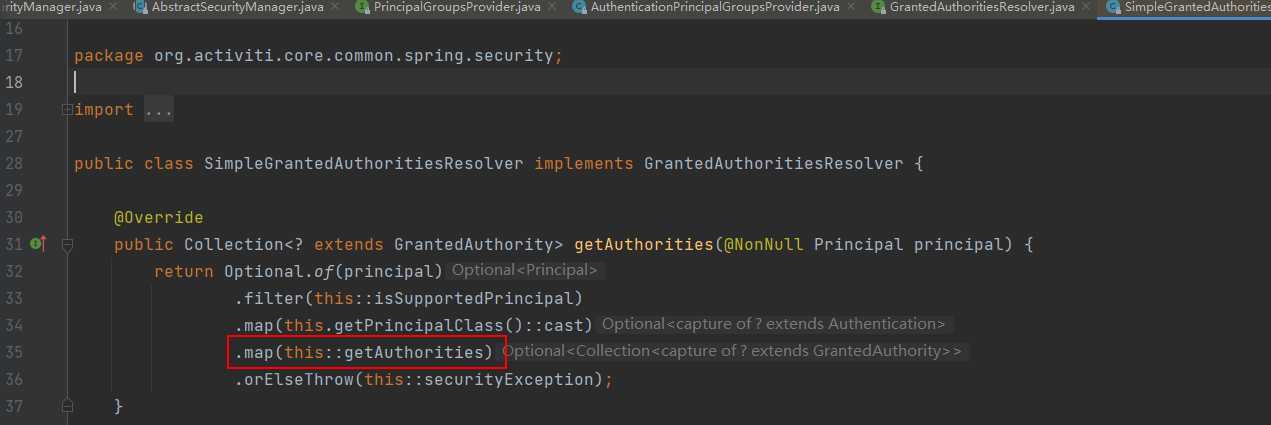

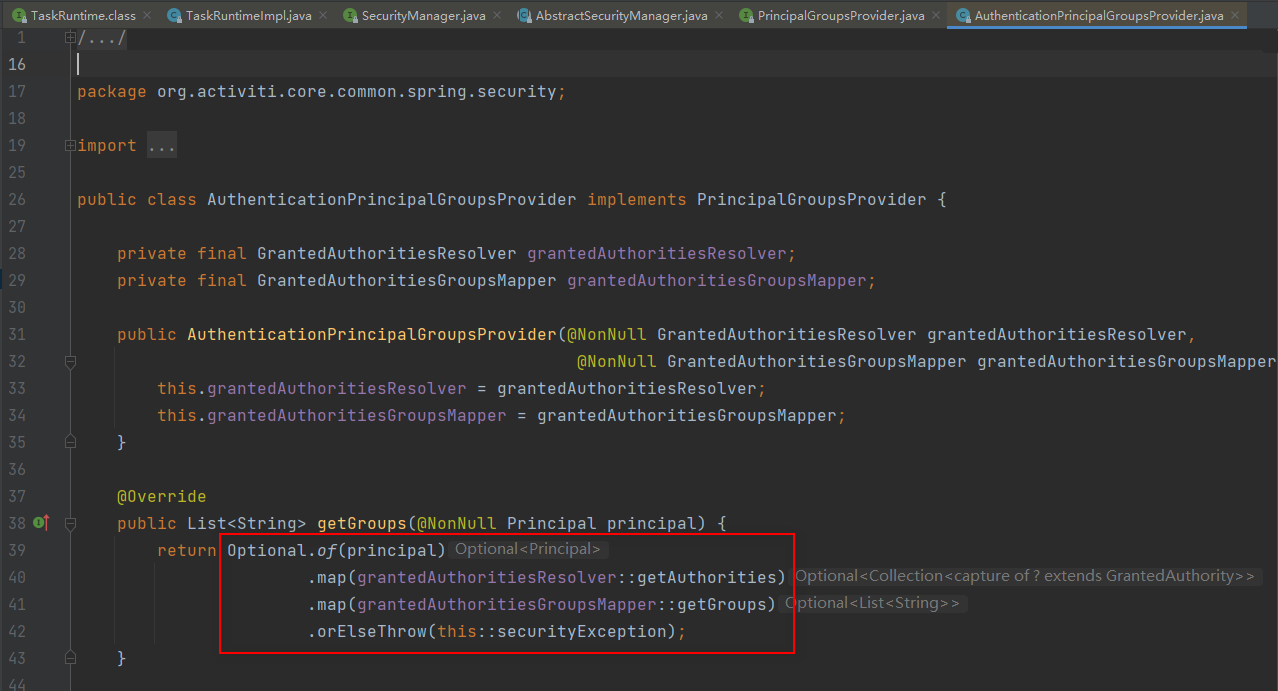

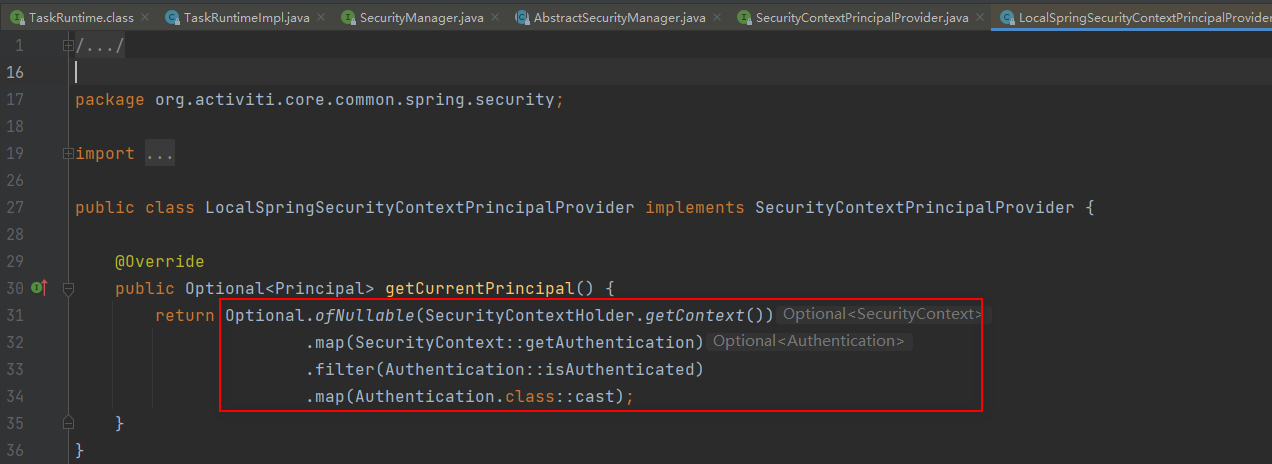

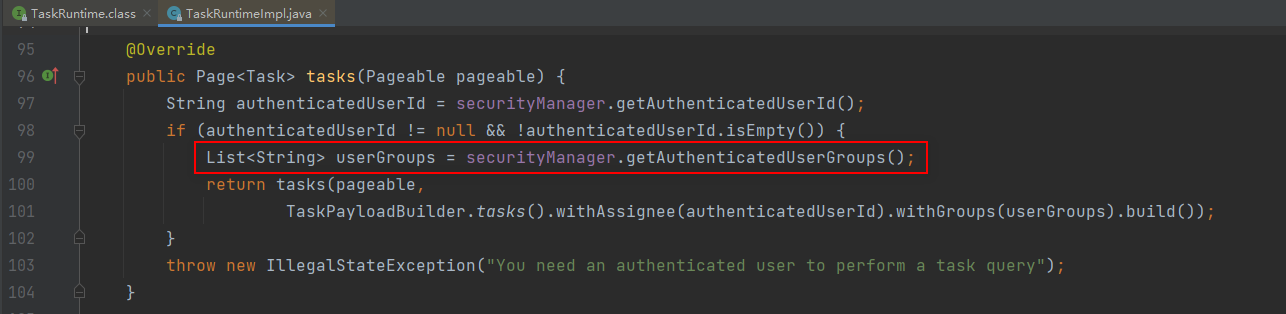

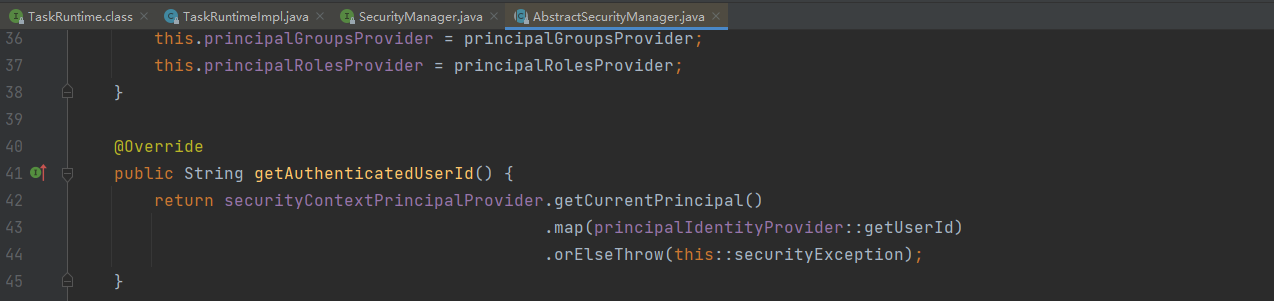

通过跟代码，我们知道，查询任务其实是这样的，等价于下面这段代码

Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
String authenticatedUserId = authentication.getName();
List<String> userGroups = authentication.getAuthorities()
        .stream()
        .map(GrantedAuthority::getAuthority)
        .filter(a -> a.startsWith("GROUP_"))
        .map(a -> a.substring("GROUP_".length()))
        .collect(Collectors.collectingAndThen(Collectors.toList(), Collections::unmodifiableList));
List<Task> taskList = taskService.createTaskQuery()
        .taskCandidateOrAssigned(authenticatedUserId, userGroups)
        .processInstanceId("xxx")
        .listPage(0,10);

查询当前登录用户的个人任务和组任务

接下来，让 zhaoliu 登录进来

package com.cjs.example.controller;
import org.activiti.api.runtime.shared.query.Page;
import org.activiti.api.runtime.shared.query.Pageable;
import org.activiti.api.task.model.Task;
import org.activiti.api.task.model.builders.TaskPayloadBuilder;
import org.activiti.api.task.runtime.TaskRuntime;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
/**


@Author ChengJianSheng


@Date 2021/7/12
*/
@RestController
@RequestMapping("/task")
public class TaskController {
@Autowired
private TaskRuntime taskRuntime;
@GetMapping("/pageList")
public void pageList() {
//  查询待办任务（个人任务 + 组任务）
Page<Task> page = taskRuntime.tasks(Pageable.of(0, 10));
 <span class="hljs-keyword">if</span> (<span class="hljs-literal">null</span> != page &amp;&amp; page.getTotalItems() &gt; <span class="hljs-number">0</span>) {
     <span class="hljs-keyword">for</span> (Task task : page.getContent()) {
         <span class="hljs-comment">//  认领任务</span>
         taskRuntime.claim(TaskPayloadBuilder.claim().withTaskId(task.getId()).build());
         <span class="hljs-comment">//  完成任务</span>
         taskRuntime.complete(TaskPayloadBuilder.complete().withTaskId(task.getId()).build());
     }
 }

}
}

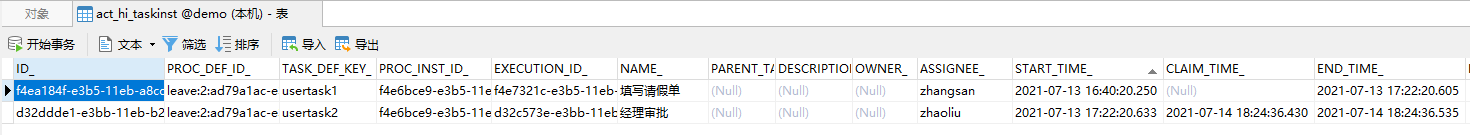

zhaoliu 完成任务后，整个流程就结束了

感谢您的阅读，如果您觉得阅读本文对您有帮助，请点一下“推荐”按钮，您的“推荐”将是我最大的写作动力！
欢迎各位转载，但必须在文章页面中给出作者和原文链接！

Activiti7 与 Spring Boot 及 Spring Security 整合踩坑记录

相关帖子

随便看看
