Spring Boot -- 启动彩蛋

使用 Spring Boot 启动的 jar 包总是会显示一个 Spring 的图标:

.   ____          _            __ _ _
/\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
(()\___ | '_ | '_| | '_ \/ _` | \ \ \ \
\\/  ___)| |_)| | | | | || (_| |  ))) )
'  |____| .__|_| |_|_| |_\__, | / / / /
=========|_|==============|___/=/_/_/_/
:: Spring Boot ::        (v1.3.3.RELEASE)

实际上 Spring Boot 在这个位置,放了一个彩蛋,我们是可以自定义这个图标的。

我们可以在 resource 目录下面放入一个banner.txt文件,Spring Boot 启动项目的时候就会优先启动这个文件中的内容。

这里给大家推荐两个个字符画生成的网站,我们可以利用生成的字符串放入这个banner.txt文件:

比如我生成一个star wars的图标:

     _______.___________.    ___      .______
    /       |           |   /   \     |   _  \
   |   (----`---|  |----`  /  ^  \    |  |_)  |
    \   \       |  |      /  /_\  \   |      /
.----)   |      |  |     /  _____  \  |  |\  \----.
|_______/       |__|    /__/     \__\ | _| `._____|

____ __ ____ ___ .______ .
\ \ / \ / / / \ | _ \ / |
\ / / / / ^ \ | |
) | | (----<span class="hljs-punctuation">\</span> <span class="hljs-operator">/</span> <span class="hljs-operator">/</span> <span class="hljs-operator">/</span>_<span class="hljs-punctuation">\</span> <span class="hljs-punctuation">\</span> <span class="hljs-operator">|</span> <span class="hljs-operator">/</span> <span class="hljs-punctuation">\</span> <span class="hljs-punctuation">\</span> <span class="hljs-punctuation">\</span> <span class="hljs-operator">/</span><span class="hljs-punctuation">\</span> <span class="hljs-operator">/</span> <span class="hljs-operator">/</span> _____ <span class="hljs-punctuation">\</span> <span class="hljs-operator">|</span> <span class="hljs-operator">|</span><span class="hljs-punctuation">\</span> <span class="hljs-punctuation">\</span><span class="hljs-operator">-</span><span class="hljs-operator">-</span><span class="hljs-operator">-</span><span class="hljs-operator">-</span>.<span class="hljs-operator">-</span><span class="hljs-operator">-</span><span class="hljs-operator">-</span><span class="hljs-operator">-</span><span class="hljs-punctuation">)</span> <span class="hljs-operator">|</span> <span class="hljs-punctuation">\</span>__<span class="hljs-operator">/</span> <span class="hljs-punctuation">\</span>__<span class="hljs-operator">/</span> <span class="hljs-operator">/</span>__<span class="hljs-operator">/</span> <span class="hljs-punctuation">\</span>__<span class="hljs-punctuation">\</span> <span class="hljs-operator">|</span> _<span class="hljs-operator">|</span>.
|
____/

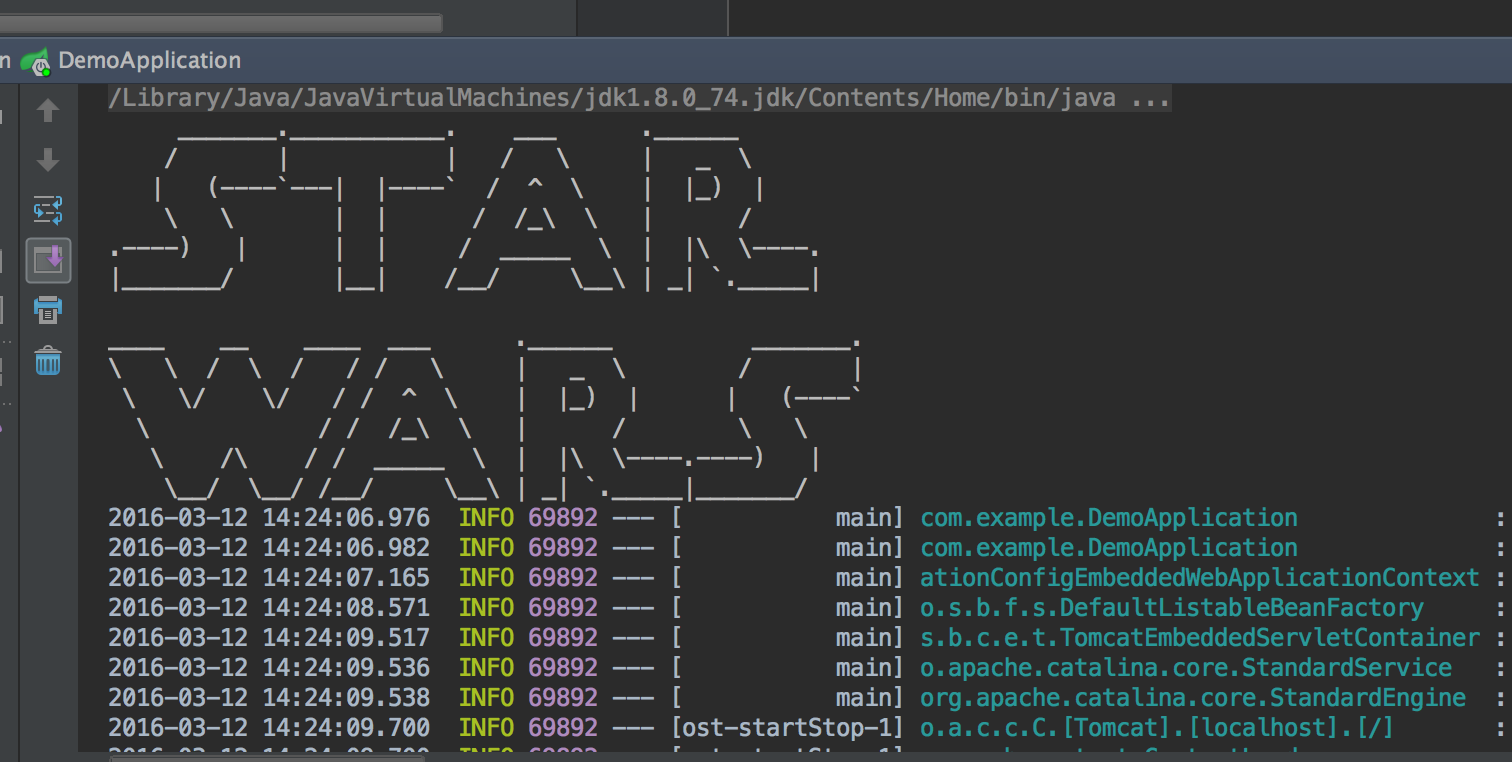

这样启动的时候

但是仅仅是这样看起来并不好看,还不如原来的图标好看呢。实际上 Spring Boot 为这个彩蛋提供了不少美化功能。

Spring Boot 提供了一个枚举类AnsiColor,这个类可以控制banner.txt中的字符颜色,而且非常容易使用。

比如我可以将字符设置成颜色:BRIGHT_YELLOW

${AnsiColor.BRIGHT_YELLOW}
     _______.___________.    ___      .______
    /       |           |   /   \     |   _  \
   |   (----`---|  |----`  /  ^  \    |  |_)  |
    \   \       |  |      /  /_\  \   |      /
.----)   |      |  |     /  _____  \  |  |\  \----.
|_______/       |__|    /__/     \__\ | _| `._____|

__ __ . .
\ \ / \ / / / \ | \ / |
\ / / / / ^ \ | |
) | | (----\ / / /_</span>\ \ | / \ \ \ /\ / / __</span><span class="hljs-strong">__<span class="hljs-emphasis">_ \ | |\ \----.----) | \<span class="hljs-strong">__/ \__</span>/ /<span class="hljs-strong">__/ \__</span>\ | _</span>|.|/

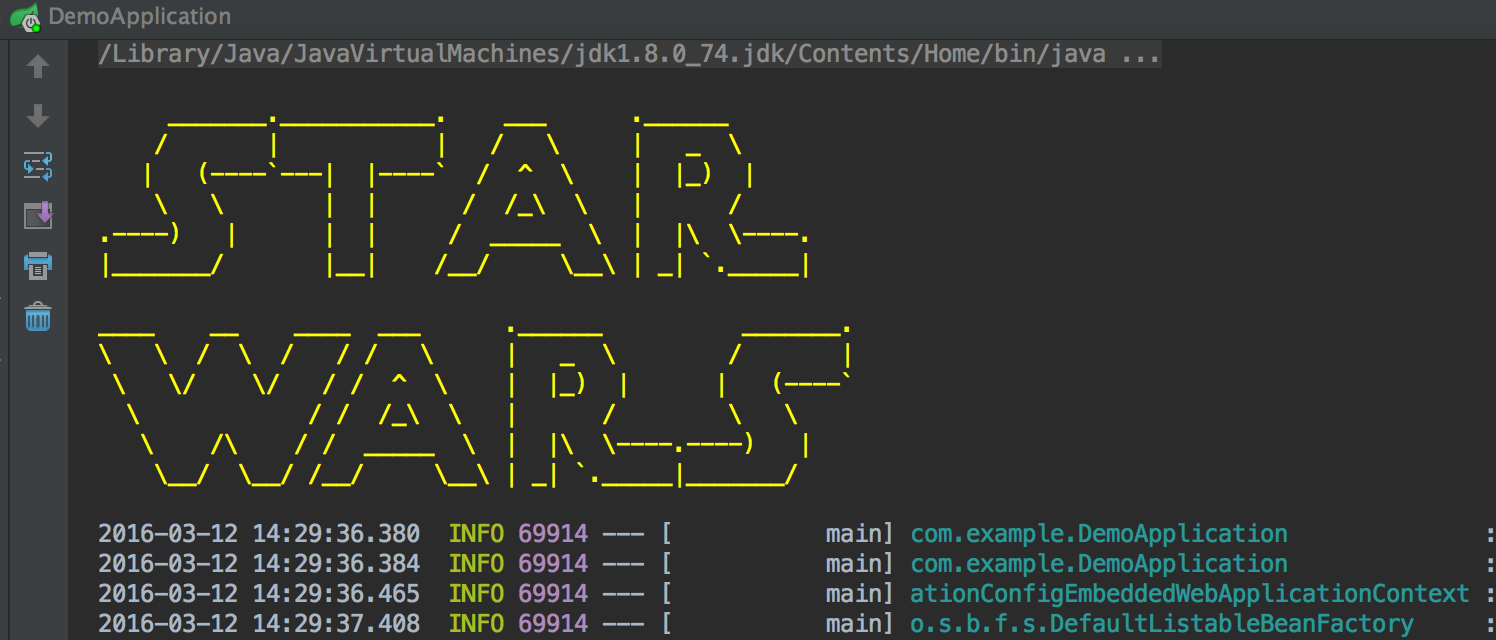

再重新启动项目,启动界面就会变成这个样子:

类似 ${AnsiColor.BRIGHT_YELLOW} 这种表达式,其实可以放置多个,启动界面上的颜色,总是会根据AnsiColor的设置改变界面的颜色,这样启动的界面就会显示多种不同的颜色了。

除了这样美化的功能之外,启动界面很重要的功能就是要告诉我们这个项目的一些重要信息。

${application.version}                这个是MANIFEST.MF文件中的版本号
${application.formatted-version} 这个是上面的的版本号前面加v后上括号
${spring-boot.version}               这个是springboot的版本号
${spring-boot.formatted-version}同上

把以上信息通过${}放入 banner.txt 中,就会打印出项目对应的信息。

这里放一个完整的 demo:

${AnsiColor.BRIGHT_YELLOW}
     _______.___________.    ___      .______         ____    __    ____  ___      .______          _______.
    /       |           |   /   \     |   _  \        \   \  /  \  /   / /   \     |   _  \        /       |
   |   (----`---|  |----`  /  ^  \    |  |_)  |        \   \/    \/   / /  ^  \    |  |_)  |      |   (----`
    \   \       |  |      /  /_\  \   |      /          \            / /  /_\  \   |      /        \   \
.----)   |      |  |     /  _____  \  |  |\  \----.      \    /\    / /  _____  \  |  |\  \----.----)   |
|_______/       |__|    /__/     \__\ | _| `._____|       \__/  \__/ /__/     \__\ | _| `._____|_______/

${AnsiColor.BRIGHT_BLUE}
::: Project (version:${application.version}) ::: \(^O^)/ Spring-Boot ${spring-boot.version}

启动就会是这一个样子:
