spring-boot 和 docker 集成
描述
java 的 Spring 是一个很火的框架,Spring boot 这个也不用说了，Docker 近年也很火热, 本文就介绍下我在 Spring boot + Docker 的集成一些经验 ：） 其实官网已经有一个手册介绍了 这里
可能会用到的东西
- JDK 1.8 或者更高
- Maven 3.0+ 或者是 Gradle 2.3+
- 一个 IDE 或者一个记事本
- 一个本地或者远程的 Docker 服务
- 充满好奇心的你
对没错, 你至少需要一个 Docker, 可以安装在本地也可以安装在服务器上, 具体安装方式请移步 这里
整个 Spring boot 的项目

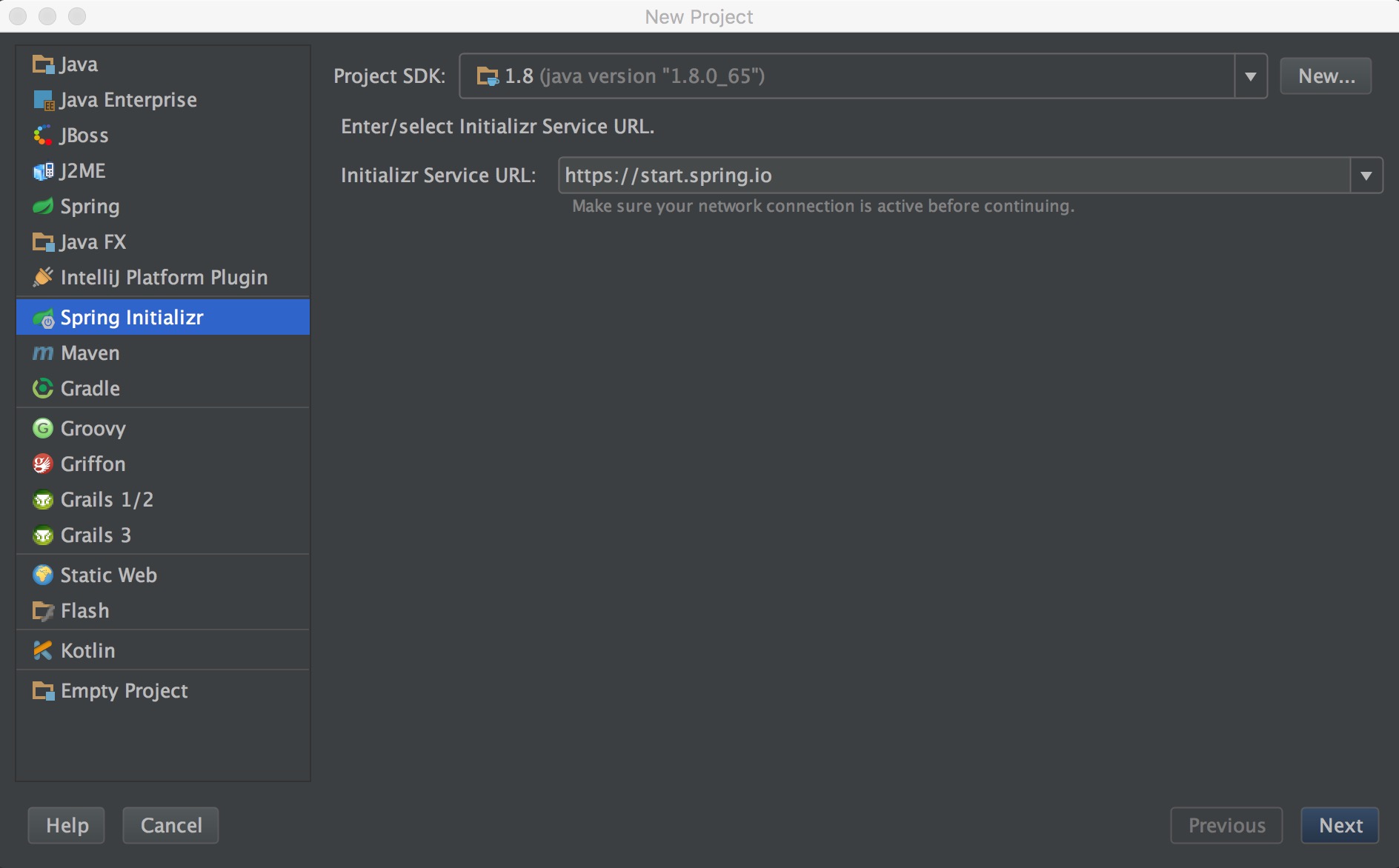

我这边用的是 IDEA 创建的
➜ sping-boot-docker tree
.
├── mvnw
├── mvnw.cmd
├── pom.xml
├── sping-boot-docker.iml
└── src
├── main
│ ├── java
│ │ └── org
│ │ └── beyondblog
│ │ ├── DemoApplication.java
│ │ ├── controller
│ │ │ └── HelloController.java
│ │ └── model
│ │ └── Hello.java
│ └── resources
│ ├── application-dev.yml
│ └── application.yml
└── test
└── java
└── org
└── beyondblog
└── DemoApplicationTests.java
12 directories, 10 files
pom.xml
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion><span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.beyondblog<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>demo<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span>0.0.1-SNAPSHOT<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">packaging</span><span style="color: rgba(0, 0, 255, 1)">></span>jar<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">packaging</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span>demo<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">description</span><span style="color: rgba(0, 0, 255, 1)">></span>Demo project for Spring Boot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">description</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">parent</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.springframework.boot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-starter-parent<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span>1.3.2.BUILD-SNAPSHOT<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">version</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">relativePath</span><span style="color: rgba(0, 0, 255, 1)">/></span> <span style="color: rgba(0, 128, 0, 1)"><!--</span><span style="color: rgba(0, 128, 0, 1)"> lookup parent from repository </span><span style="color: rgba(0, 128, 0, 1)">--></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">parent</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">properties</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">project.build.sourceEncoding</span><span style="color: rgba(0, 0, 255, 1)">></span>UTF-8<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">project.build.sourceEncoding</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">java.version</span><span style="color: rgba(0, 0, 255, 1)">></span>1.8<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">java.version</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">properties</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">dependencies</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.springframework.boot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-starter-web<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.springframework.boot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-starter-test<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">scope</span><span style="color: rgba(0, 0, 255, 1)">></span>test<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">scope</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">dependency</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">dependencies</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">build</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">plugins</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">plugin</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span>org.springframework.boot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">groupId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-boot-maven-plugin<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">artifactId</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">plugin</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">plugins</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">build</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">repositories</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">repository</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">id</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-snapshots<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">id</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span>Spring Snapshots<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">url</span><span style="color: rgba(0, 0, 255, 1)">></span>https://repo.spring.io/snapshot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">url</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">snapshots</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">enabled</span><span style="color: rgba(0, 0, 255, 1)">></span>true<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">enabled</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">snapshots</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">repository</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">repository</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">id</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-milestones<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">id</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span>Spring Milestones<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">url</span><span style="color: rgba(0, 0, 255, 1)">></span>https://repo.spring.io/milestone<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">url</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">snapshots</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">enabled</span><span style="color: rgba(0, 0, 255, 1)">></span>false<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">enabled</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">snapshots</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">repository</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">repositories</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">pluginRepositories</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">pluginRepository</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">id</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-snapshots<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">id</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span>Spring Snapshots<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">url</span><span style="color: rgba(0, 0, 255, 1)">></span>https://repo.spring.io/snapshot<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">url</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">snapshots</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">enabled</span><span style="color: rgba(0, 0, 255, 1)">></span>true<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">enabled</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">snapshots</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">pluginRepository</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">pluginRepository</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">id</span><span style="color: rgba(0, 0, 255, 1)">></span>spring-milestones<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">id</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span>Spring Milestones<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">name</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">url</span><span style="color: rgba(0, 0, 255, 1)">></span>https://repo.spring.io/milestone<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">url</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">snapshots</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"><</span><span style="color: rgba(128, 0, 0, 1)">enabled</span><span style="color: rgba(0, 0, 255, 1)">></span>false<span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">enabled</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">snapshots</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">pluginRepository</span><span style="color: rgba(0, 0, 255, 1)">></span> <span style="color: rgba(0, 0, 255, 1)"></</span><span style="color: rgba(128, 0, 0, 1)">pluginRepositories</span><span style="color: rgba(0, 0, 255, 1)">></span></project>
程序很简单创建了一个 Controller, 然后映射了一个 /hello 的路由 运行之后如下
➜ target java -jar demo-0.0.1-SNAPSHOT.jar
➜ sping-boot-docker http "http://127.0.0.1:8080/hello"
HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8
Date: Sun, 20 Dec 2015 23:41:14 GMT
Server: Apache-Coyote/1.1
Transfer-Encoding: chunked
{
"code": 200,
"messge": "Hello spring! profile=production"
}
可以正常允许，然后配置下 pom 集成 docker (也可以用 Dockerfile)
<build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> <plugin> <groupId>com.spotify</groupId> <artifactId>docker-maven-plugin</artifactId> <version>0.3.8</version> <executions> <execution> <phase>deploy</phase> <goals> <goal>build</goal> <goal>tag</goal> </goals> </execution> </executions> <configuration> <dockerHost>http://172.16.0.17:2375</dockerHost> <imageName>registry.****.com/demo:${project.artifactId}</imageName> <baseImage>docker.io/java:latest</baseImage> <registryUrl>https://registry.****.com</registryUrl> <env> <TZ>'Asia/Shanghai'</TZ> <LC_ALL>en_US.UTF-8</LC_ALL> </env> <resources> <resource> <targetPath>/</targetPath> <directory>${project.build.directory}</directory> <include>${project.build.finalName}.jar</include> </resource> <!--<resource>--> <!--<targetPath>/web</targetPath>--> <!--<directory>${project.build.directory}/web</directory>--> <!--</resource>--> </resources> <exposes> <expose>8080</expose> </exposes> <cmd>["java", "-jar", "/${project.build.finalName}.jar"]</cmd> <image>registry.****.com/demo:${project.artifactId}</image> <newName>registry.****.com/demo</newName> <forceTags>true</forceTags> <pushImage>false</pushImage> </configuration> </plugin> </plugins> </build>
描述下这段的意思
这儿用到的是 spotify 公司（就是那个做音乐的）的 docker-maven-plugin 插件用的是目前最新的 0.3.8 之前的几个版本有一些目录拷贝的 bug。
configuration 节点
有个 dockerHost 就是 docker 服务器的地址 (必选)
imageName 就是生成的镜像名称的东西
baseImage 就是容器基于那个镜像跑 这儿用的是官方的 docker.io/java:latest（可以直接 docker pull 下来，也可以用自己做的。官方的是 OpenJDK Java 7 JRE 可以去看它的项目主页 这里 ） 就是一个 JRE 的环境
registryUrl 这个就是 docker 自建的私服地址 (可空) 这个填了之后可以触发 push 到仓库的指令
env 不解释 默认的时区啊 字符集啊别忘记了 (自制镜像的可以忽略它)
resources 里面包含需要将那些东西包装到镜像里面去，注意我注释的这段
<resource>
<targetPath>/web</targetPath>
<directory>${project.build.directory}/web</directory>
</resource>
这个是为了举例如何包含整个目录（通过看源代码发现 不写 include 就是 copy 整个目录 目前插件的 0.38 版本是, 之前的版本好像拷贝目录下的所有文件囧。。。）
exposes 是暴露出容器的那个端口出来, 这儿填的是 8080 Spring boot 默认就这端口
cmd 是镜像在 run 的时候默认执行的命令, 这儿默认直接 run （ps: 这块可以指定 profile 做生产环境和开发环境的切换）
image 同 imageName
newName 是 Tag 的时候生成的名字 （可选） 强烈推荐加这个 这样默认会把新的容器的 tag 设置成 latest
forceTags 是否强制 tag (强行哟)
pushImage 是否自动 push 到仓库
基本上需要用的就这么多, 当然还有一些其他的参数可以去它的项目主页看
配置完了之后可以用 mvn 的一些指令了 如下
docker:build 应该是编译镜像（强烈建议跟 mvn install 不然会有一个坑）
-DpushImage 加这个参数可以强制push镜像到仓库
DOCKER_HOST 加这个环境变量可以设置默认的 docker 主机地址 不过上面 dockerHost 已经填了
docker:removeImage 删除镜像吧
-DimageName=xxx 设置镜像名称
docker:tag 打 tag
还有一些设置认证的介绍可以去看它的项目主页或者读源代码
下面就执行下
mvn install docker:build docker:tag
可以看到类似下面的输出
[INFO] Copying /Users/xxx/Documents/code/github/sping-boot-docker/target/demo-0.0.1-SNAPSHOT.jar -> /Users/xxx/Documents/code/github/sping-boot-docker/target/docker/demo-0.0.1-SNAPSHOT.jar
[INFO] Building image registry.****.com/demo:demo
Step 0 : FROM docker.io/java:latest
---> e9de8c6faf15
Step 1 : ENV LC_ALL en_US.UTF-8
---> Using cache
---> 8600ba9f5363
Step 2 : ENV TZ 'Asia/Shanghai'
---> Using cache
---> 9416efd6b55a
Step 3 : ADD /demo-0.0.1-SNAPSHOT.jar //
---> 8cf7cbbd260e
Removing intermediate container 9a53dfb28f52
Step 4 : EXPOSE 8080
---> Running in 4f640acaf303
---> 3a4400f72be5
Removing intermediate container 4f640acaf303
Step 5 : CMD java -jar /demo-0.0.1-SNAPSHOT.jar
---> Running in e8ff98f7e9ce
---> 6834dbb25c33
Removing intermediate container e8ff98f7e9ce
Successfully built 6834dbb25c33
[INFO] Built registry.****.com/demo:demo
通过这个输出可以知道这个插件的原理大致是 install 成功 jar 之后根据 pom 文件的配置去生成一个 dockerfile 的文件然后把 jar 包和 dockerfile 打包调用 docker 的 api 去 build 去 push
可以看到它生成的 dockerfile 来验证
➜ sping-boot-docker cd target/docker
➜ docker ls
Dockerfile demo-0.0.1-SNAPSHOT.jar
➜ docker cat Dockerfile
FROM docker.io/java:latest
ENV LC_ALL en_US.UTF-8
ENV TZ 'Asia/Shanghai'
ADD /demo-0.0.1-SNAPSHOT.jar //
EXPOSE 8080
CMD ["java", "-jar", "/demo-0.0.1-SNAPSHOT.jar"]
➜ docker
这个时候去 docker 服务器上看看镜像的情况
[root@172-16-0-17 cache]# docker images | grep "demo"
registry.****.com/demo demo 6834dbb25c33 5 minutes ago 655.3 MB
registry.****.com/demo latest 6834dbb25c33 5 minutes ago 655.3 MB
可以看到有两个但是通过看它的 digest 其实是同一个镜像不同的名字而已。 因为我们有 docker:tag 这样就会在生成一个 latest
可以看到镜像还挺大的这主要是那个 java 的基础镜像大（可以自制一个小的）不过 docker 每次都是有 cache 和增量更新所以速度还是很快的
然后验证下能不能正常工作
docker run -p 6666:8080 registry.****.com/demo
. ____ _ __ _ _
/\ / ' __ _ () __ __ _ \ \ \
(()__ | '_ |'| | ' / ` | \ \ \
\/ __)| |)| | | | | || (| | ))) )
' || .__|| ||| |_, | / / / /
=========||==============|/=////
:: Spring Boot :: (v1.3.2.BUILD-SNAPSHOT)
2015-12-21 08:30:05.303 INFO 1 --- [main] org.beyondblog.DemoApplication : Starting DemoApplication v0.0.1-SNAPSHOT on a734ef04ef23 with PID 1 (/demo-0.0.1-SNAPSHOT.jar started by root in /)
2015-12-21 08:30:05.307 INFO 1 --- [main] org.beyondblog.DemoApplication : No active profile set, falling back to default profiles: default
2015-12-21 08:30:05.463 INFO 1 --- [main] ationConfigEmbeddedWebApplicationContext : Refreshing org.springframework.boot.context.embedded.AnnotationConfigEmbeddedWebApplicationContext@429e6a3d: startup date [Mon Dec 21 08:30:05 CST 2015]; root of context hierarchy
2015-12-21 08:30:06.471 INFO 1 --- [main] o.s.b.f.s.DefaultListableBeanFactory : Overriding bean definition for bean 'beanNameViewResolver' with a different definition: replacing [Root bean: class [null]; scope=; abstract=false; lazyInit=false; autowireMode=3; dependencyCheck=0; autowireCandidate=true; primary=false; factoryBeanName=org.springframework.boot.autoconfigure.web.ErrorMvcAutoConfiguration$WhitelabelErrorViewConfiguration; factoryMethodName=beanNameViewResolver; initMethodName=null; destroyMethodName=(inferred); defined in class path resource [org/springframework/boot/autoconfigure/web/ErrorMvcAutoConfiguration$WhitelabelErrorViewConfiguration.class]] with [Root bean: class [null]; scope=; abstract=false; lazyInit=false; autowireMode=3; dependencyCheck=0; autowireCandidate=true; primary=false; factoryBeanName=org.springframework.boot.autoconfigure.web.WebMvcAutoConfiguration$WebMvcAutoConfigurationAdapter; factoryMethodName=beanNameViewResolver; initMethodName=null; destroyMethodName=(inferred); defined in class path resource [org/springframework/boot/autoconfigure/web/WebMvcAutoConfiguration$WebMvcAutoConfigurationAdapter.class]]
2015-12-21 08:30:07.725 INFO 1 --- [main] s.b.c.e.t.TomcatEmbeddedServletContainer : Tomcat initialized with port(s): 8080 (http)
2015-12-21 08:30:07.745 INFO 1 --- [main] o.apache.catalina.core.StandardService : Starting service Tomcat
2015-12-21 08:30:07.746 INFO 1 --- [main] org.apache.catalina.core.StandardEngine : Starting Servlet Engine: Apache Tomcat/8.0.30
2015-12-21 08:30:07.834 INFO 1 --- [ost-startStop-1] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext
2015-12-21 08:30:07.835 INFO 1 --- [ost-startStop-1] o.s.web.context.ContextLoader : Root WebApplicationContext: initialization completed in 2386 ms
2015-12-21 08:30:08.106 INFO 1 --- [ost-startStop-1] o.s.b.c.e.ServletRegistrationBean : Mapping servlet: 'dispatcherServlet' to [/]
2015-12-21 08:30:08.110 INFO 1 --- [ost-startStop-1] o.s.b.c.embedded.FilterRegistrationBean : Mapping filter: 'characterEncodingFilter' to: [/*]
2015-12-21 08:30:08.110 INFO 1 --- [ost-startStop-1] o.s.b.c.embedded.FilterRegistrationBean : Mapping filter: 'hiddenHttpMethodFilter' to: [/*]
2015-12-21 08:30:08.110 INFO 1 --- [ost-startStop-1] o.s.b.c.embedded.FilterRegistrationBean : Mapping filter: 'httpPutFormContentFilter' to: [/*]
2015-12-21 08:30:08.111 INFO 1 --- [ost-startStop-1] o.s.b.c.embedded.FilterRegistrationBean : Mapping filter: 'requestContextFilter' to: [/*]
2015-12-21 08:30:08.523 INFO 1 --- [main] s.w.s.m.m.a.RequestMappingHandlerAdapter : Looking for @ControllerAdvice: org.springframework.boot.context.embedded.AnnotationConfigEmbeddedWebApplicationContext@429e6a3d: startup date [Mon Dec 21 08:30:05 CST 2015]; root of context hierarchy
2015-12-21 08:30:08.566 INFO 1 --- [main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/hello],methods=[GET]}" onto public java.lang.Object org.beyondblog.controller.HelloController.hello()
2015-12-21 08:30:08.568 INFO 1 --- [main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/error],produces=[text/html]}" onto public org.springframework.web.servlet.ModelAndView org.springframework.boot.autoconfigure.web.BasicErrorController.errorHtml(javax.servlet.http.HttpServletRequest,javax.servlet.http.HttpServletResponse)
2015-12-21 08:30:08.568 INFO 1 --- [main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/error]}" onto public org.springframework.http.ResponseEntity<java.util.Map<java.lang.String, java.lang.Object>> org.springframework.boot.autoconfigure.web.BasicErrorController.error(javax.servlet.http.HttpServletRequest)
2015-12-21 08:30:08.587 INFO 1 --- [main] o.s.w.s.handler.SimpleUrlHandlerMapping : Mapped URL path [/webjars/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
2015-12-21 08:30:08.587 INFO 1 --- [main] o.s.w.s.handler.SimpleUrlHandlerMapping : Mapped URL path [/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
2015-12-21 08:30:08.613 INFO 1 --- [main] o.s.w.s.handler.SimpleUrlHandlerMapping : Mapped URL path [/**/favicon.ico] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
2015-12-21 08:30:08.714 INFO 1 --- [main] o.s.j.e.a.AnnotationMBeanExporter : Registering beans for JMX exposure on startup
2015-12-21 08:30:08.782 INFO 1 --- [main] s.b.c.e.t.TomcatEmbeddedServletContainer : Tomcat started on port(s): 8080 (http)
2015-12-21 08:30:08.794 INFO 1 --- [main] org.beyondblog.DemoApplication : Started DemoApplication in 5.045 seconds (JVM running for 7.068)
这个命令 有个 -p 是容器的端口和主机的端口映射 也就是通过 6666 访问容器的 8080 端口 可以在加个 -d 使它能在后台跑 (不过哪有就看不到输出)
先看看数据能不能出来
➜ docker http "http://172.16.0.17:6666/hello" HTTP/1.1 200 OK Content-Type: application/json;charset=UTF-8 Date: Mon, 21 Dec 2015 00:32:20 GMT Server: Apache-Coyote/1.1 Transfer-Encoding: chunked
{
"code": 200,
"messge": "Hello spring! profile=production"
}
好了大致是 ok。先这样工头喊我去搬砖了下次在介绍如果处理日志和 k8s 集群管理
参考文章:
